Chapter 7: Plumbing Walkaround Models • Owner’s Manual Supplement
Baitwell & Seawater Washdown Systems (If Equipped)
2002 Baitwell System
Hull & Deck Views
FLOODING & SWAMPING HAZARD!
• While the seawater washdown system or baitwell system is running, NEVER leave the boat
unattended for any length of time.
• Any leak or break in the system could allow large amounts of water to pump into the bilge,
swamping the batteries and engine, and possibly sinking the boat.
• Close the seacock whenever the seawater system or baitwell system is not in use.
WARNING!
!
SYSTEM DAMAGE HAZARD!
• Before using the seawater washdown system or baitwell system, make sure that the system’s
seacock is in the OPEN position and keep the seacock Open until the system is shut Off.
CAUTION
!

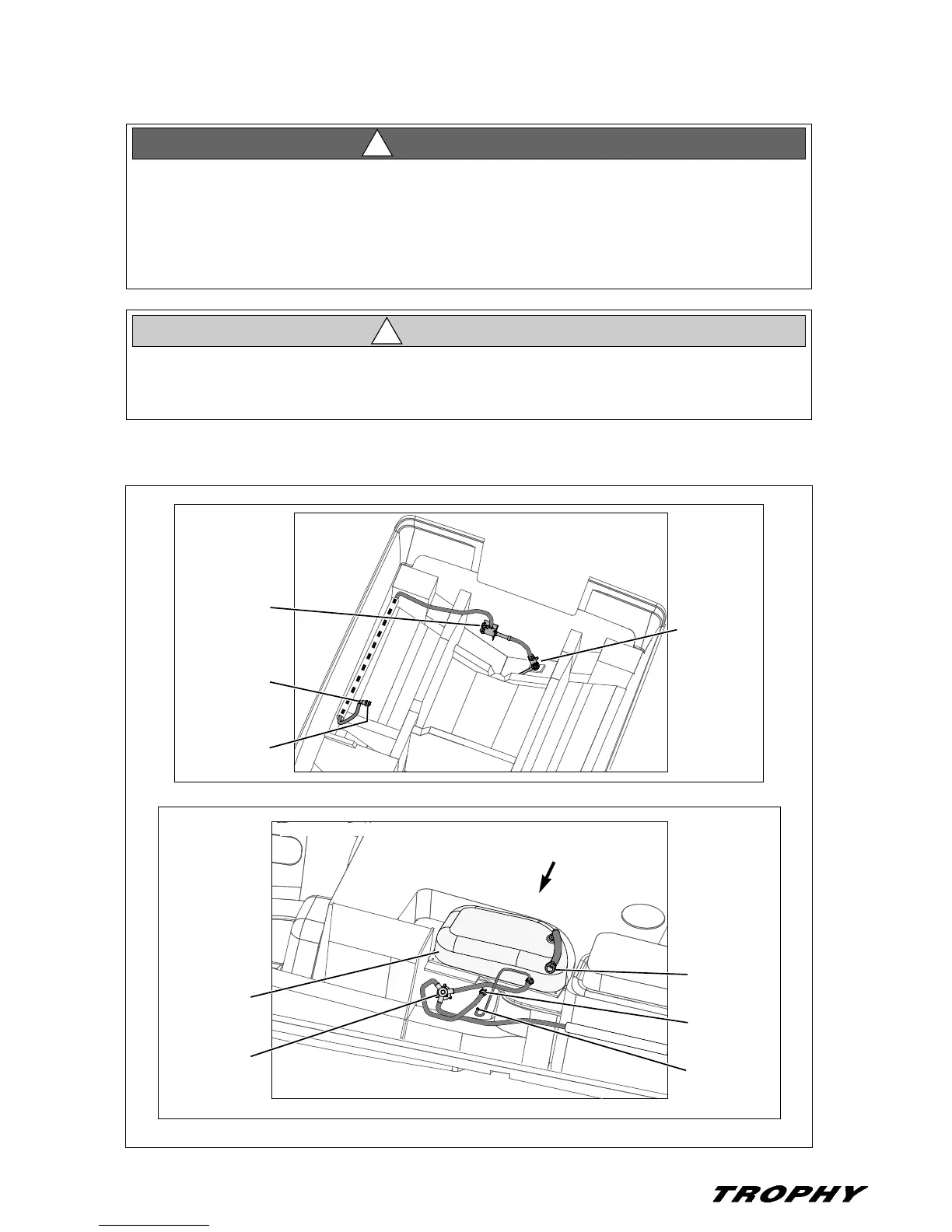

PICKUP PUMP
AERATOR
STARBOARD
NOTE: VIEW IS UNDERSIDE OF DECK
Y-VALVE
(IF EQUIPPED)
VENT
HULL ROUTING
DECK ROUTING
SEAWATER
PICKUP &
SEACOCK
SEAWATER
WASHDOWN
DECK FITTING
(IF EQUIPPED)
DRAIN
THRU-HULL
BAITWELL
TANK
TO BAITWELL
(STANDARD)
TO Y-VALVE
(PRO PACK)
To Next Page
