Walkaround Models • Owner’s Manual Supplement Chapter 7: Plumbing
Filling & Using the Baitwell
1. Insert the rubber end of the
drain standpipe into the drain
fitting at the bottom of
the tank.
2. Open the seawater
intake seacock.
3. On the main switch panel, turn
On the baitwell switch.
The tank should now be filling
with water. If water is not pump-
ing into the tank, possible
causes are:
• A collapsed hose or clogging
debris in the system.
• The seacock is Closed.
• The baitwell fuse is blown.
Draining the Baitwell
1. Open the drain seacock.
2. Close the drain seacock after
the baitwell has
completely drained.
Aeration Tips
The level of aeration is controlled
by the aerator control valve.
• In clean ocean water little or no
aeration is needed.
• In brackish back waters a
higher level of aeration may
be needed.
• The baitwell fuse is blown.
Seawater Washdown System
1. Open the seawater
intake seacock.
2. On the main switch panel, turn
On the baitwell pump switch.

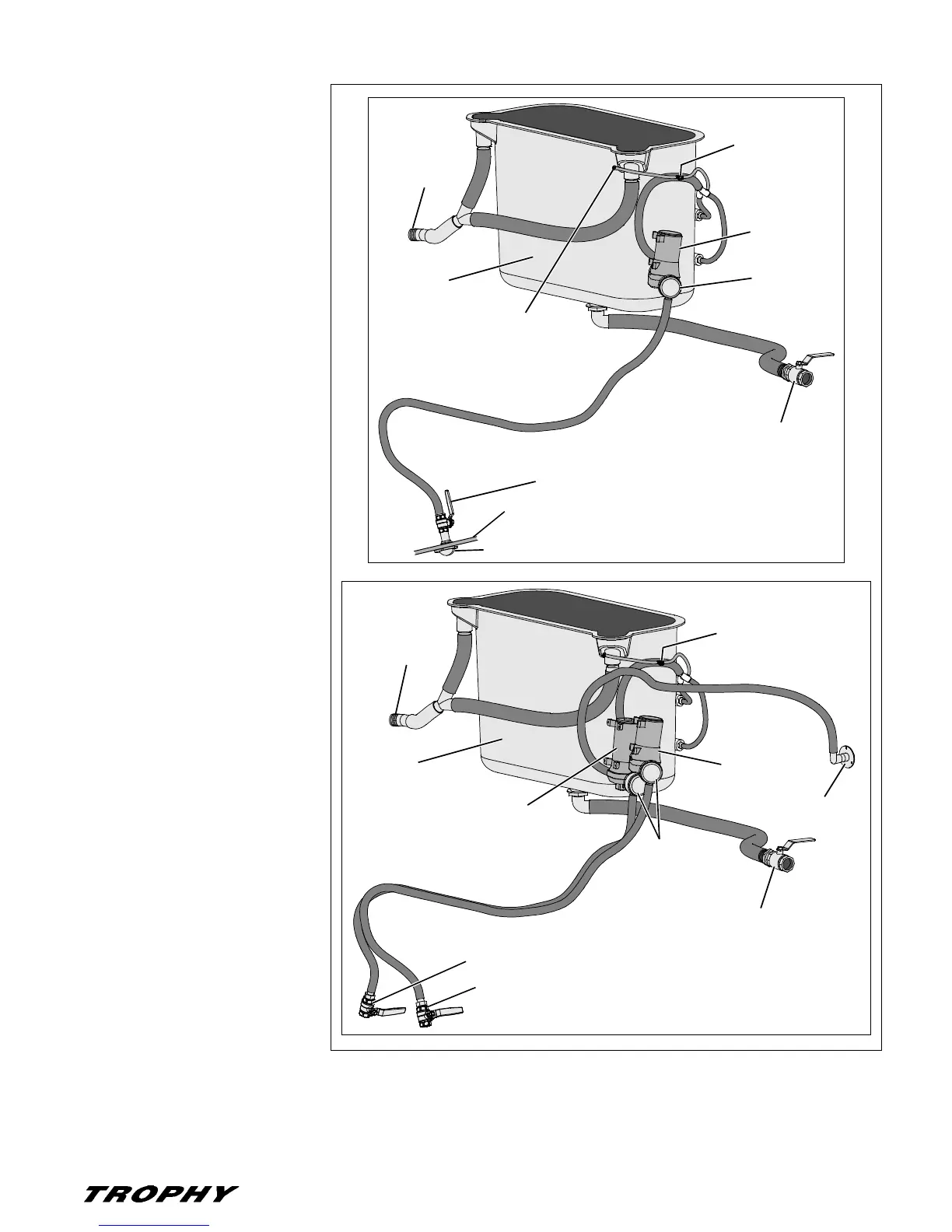

STANDARD BAITWELL SYSTEM
AERATOR
OVERFLOW
AERATOR
SEAWATER
SEAWATER
CUT-AWAY VIEW
OF HULL BOTTOM
SEAWATER STRAINER
SEAWATER
PICKUP SEACOCK
DRAIN
VENT
PROPACK OPTION BAITWELL SYSTEM
OVERFLOW
AERATION
WASHDOWN
DECK FITTING
WASHDOWN
PICKUP PUMP
BAITWELL
PICKUP PUMP
FILTERS
SEAWATER WASHDOWN SYSTEM
SEAWATER PICKUP SEACOCK
BAITWELL SYSTEM
SEAWATER PICKUP SEACOCK
DRAIN
FILTER
PICKUP PUMP
CONTROL VALVE
CONTROL VALVE
BAITWELL
TANK
BAITWELL
TANK
DRAIN
SEACOCK
DRAIN
SEACOCK
