Chapter 12: Electrical System Walkaround Models • Owner’s Manual Supplement
2352

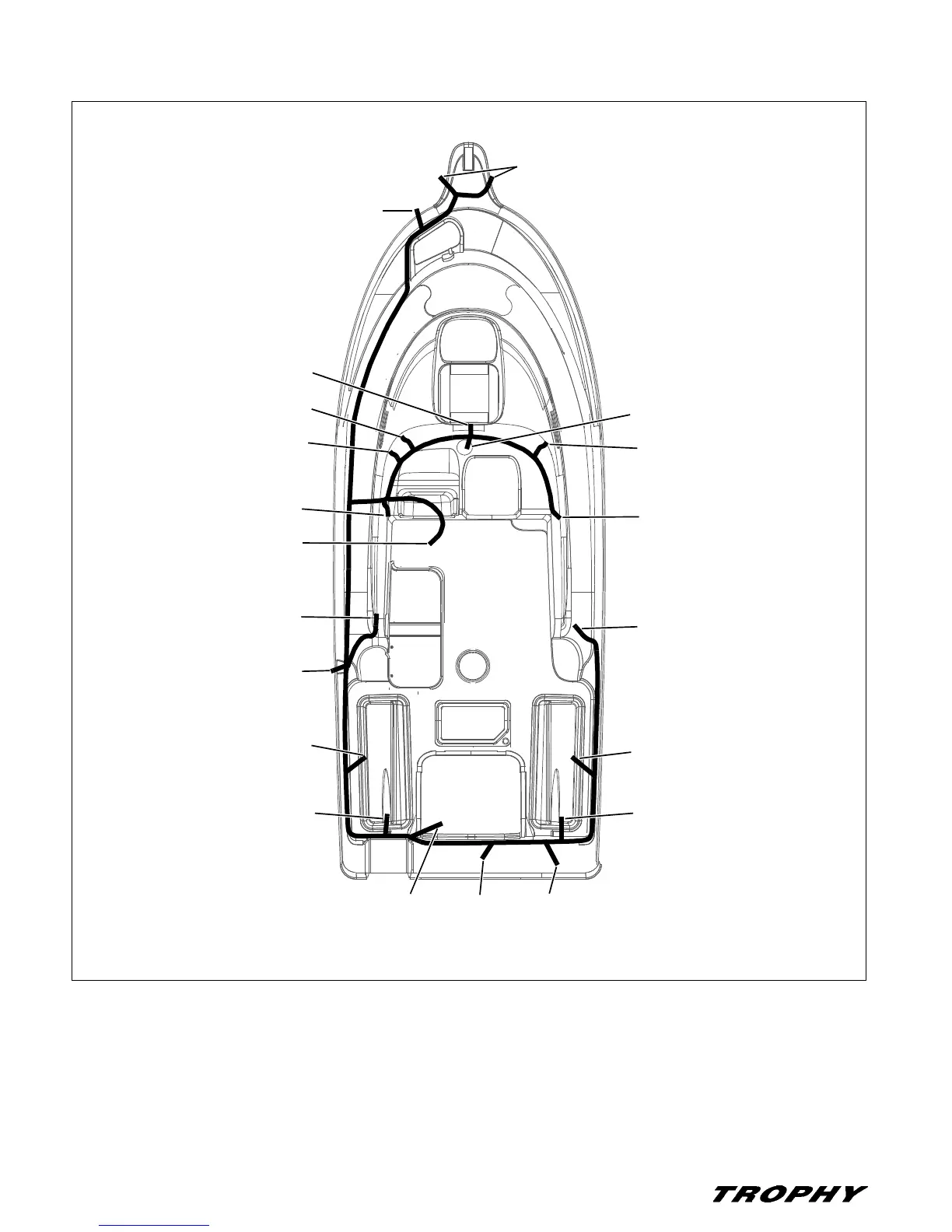

NOTE: VIEW IS UNDERSIDE OF DECK
NAVIGATION
LIGHTS
DASH
ALL-AROUND
LIGHT
COMPASS
STARBOARD
WIPER
PORT WIPER
(IF EQUIPPED)
SHIFT/THROTTLE
CONTROLS
STARBOARD
SPEAKER
FUEL FILL
GROUND
PORT
SPEAKER
ENGINE
PLUG
FISH WELL DRAIN
SUMP PUMP
COURTESY
LIGHT
STEREO
CARBON MONOXIDE
ALARM
OVERHEAD
LIGHT
HORN
COURTESY
LIGHT
FISH WELL DRAIN
SUMP PUMP
TRIM TAB
PUMP
