Machine overview
4.2 Laser power potentiometer
Using the Laserpower potentiometer (available as an option), you can electrically adjust the laser power during the
engraving or cutting process. cutting process. Adjustments of ± 20% are possible. This application can be used, for
example, to increase the laser power when cutting outer contours, so that the job does not have to be started again.

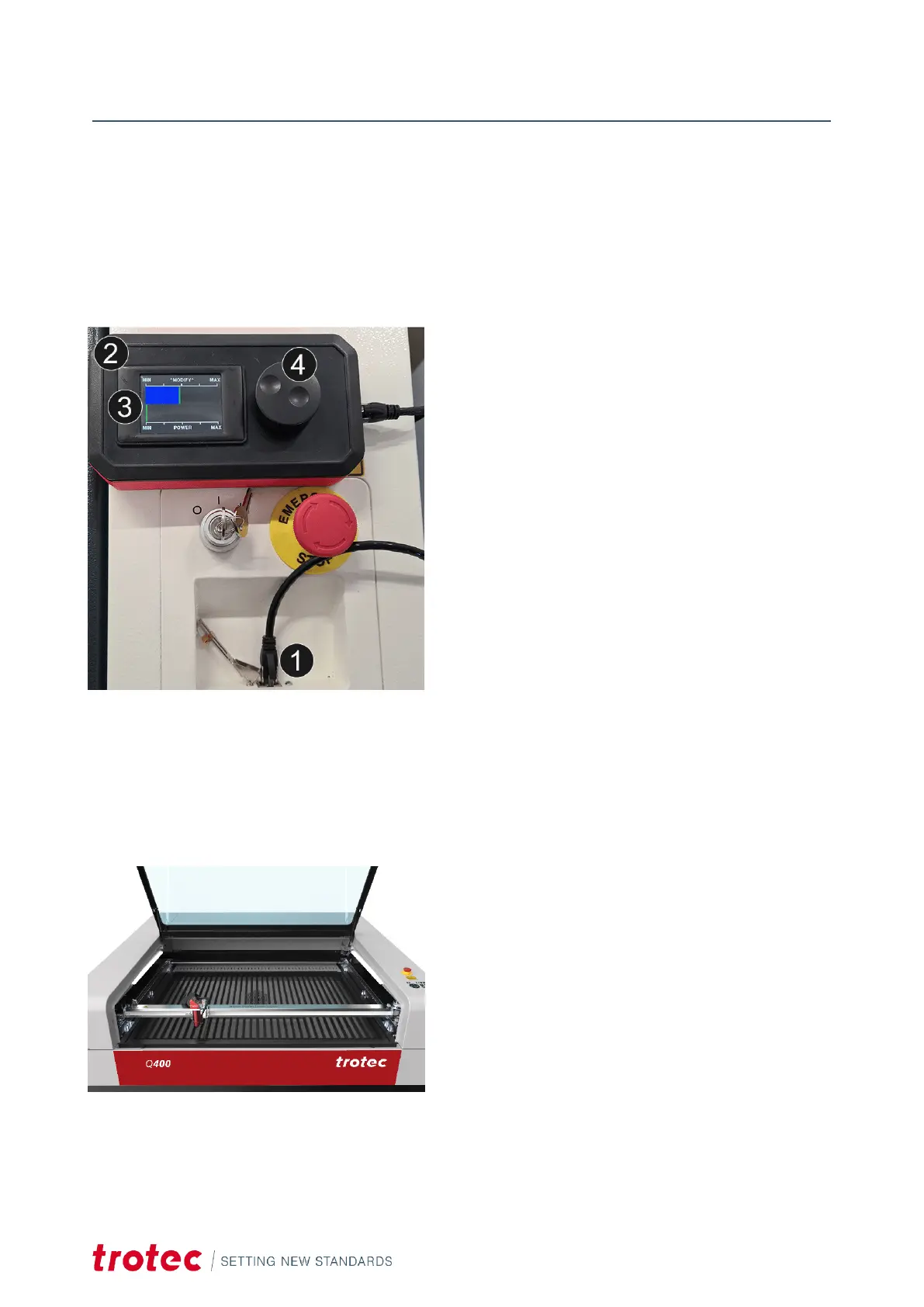

❶ Connect the Laserpower potentiometer (DC sources
only) with the supplied RJ45 cable.
❷ The bar graph shows the current laser power during
cutting/engraving, the display is time-limited and is
updated at short intervals. The flickering during processing
corresponds to the current power.
❸ By default, this bar graph is always exactly in the middle
when the machine is started up, on MODIFY. Modify means
factor 1. The laser power corresponds to the power set in
the soware.
❹ Rotary wheel for regulation.
One line on the bargraph 2 corresponds to about 5%. Four
discrete steps can be made per side (MIN/MAX). By pressing
the rotary wheel, the initial state is restored with factor
1. The settings are saved and will not be lost when the
machine is restarted.
4.3 Tables
ALUMINUM SLAT CUTTING TABLE
The cutting table with aluminum slats is ideal for cutting
thicker materials (from 8 mm thickness) and for parts over
100 mm wide. The lamellas can be arranged individually, so
the table can be adapted to any individual application.
33
