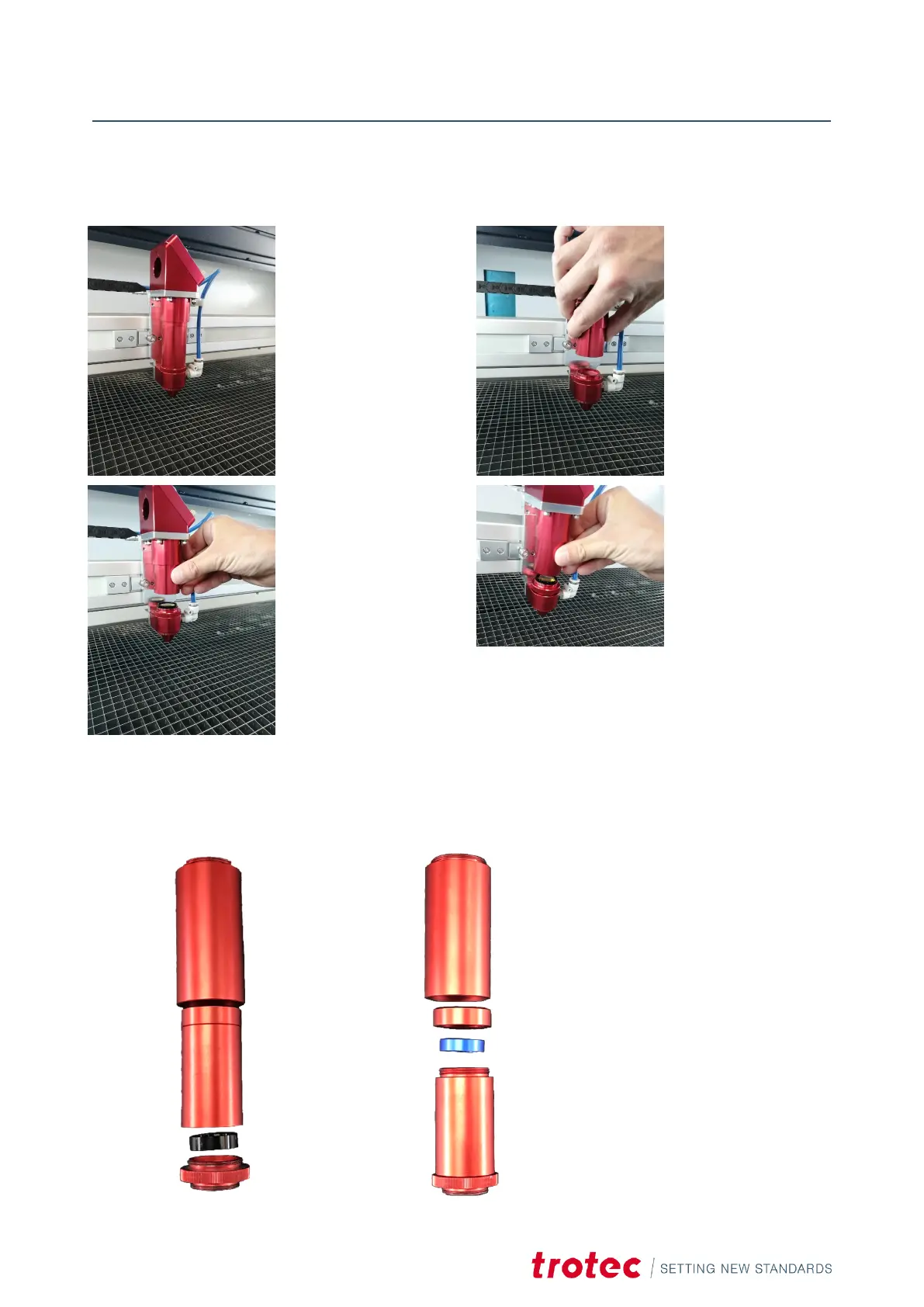

7.5 Changing the lens
1. Loosen the tube at
the lower thread
without removing
the entire tube
from the laser
head.
2. Slide the tube
upwards to expose
the lens holder.
3. Here: Take the 2.0
inch lens out of its
socket.
You can clean or
replace the lens.
4. Replace the lens
and fix the tube to
the lower thread.
