Trotec Q400 User Manual

Operation

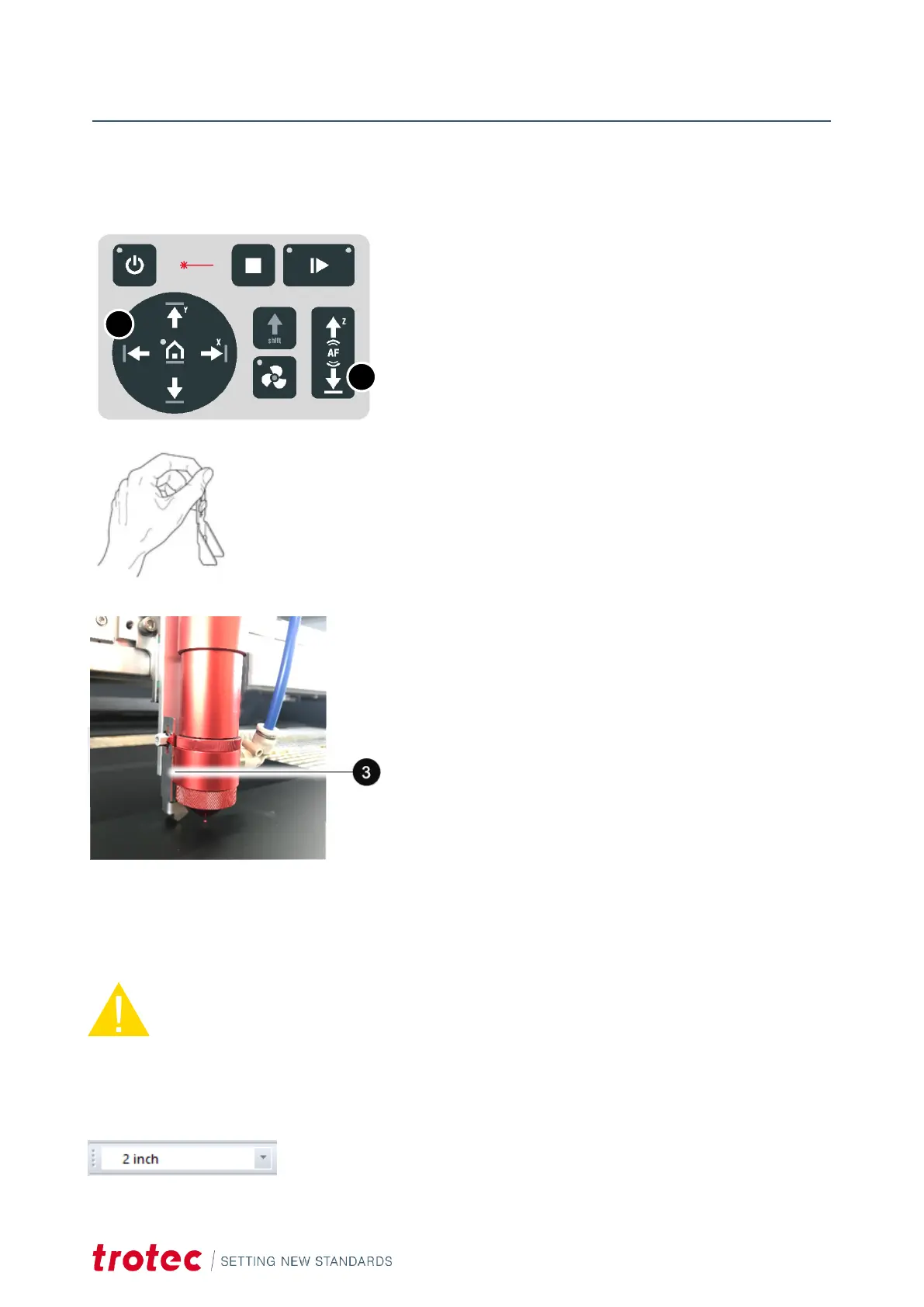

7.8.1 Focus tool
2
1
1. Move the processing head over the material to be engraved
by means of the Laser head control button X/Y (2) on the
keypad.
2. Hang the focus tool (3) on the allocated space on the laser
head so that the focus tool can move unhindered.
3. Move the X-axis downwards by pressing the Working table
control button Z (1).
4. Before the focus tool reaches the work piece, move the
working table upwards very slowly and step by step by briefly
tapping the Working table control button Z (1) until the focus
tool tilts to the side or falls off its position.
Now the lens is focused onto the surface of the material.
7.8.2 Sonar Technology
TM
Caution
If the ultrasonic sensor is heavily soiled, the laser head may be damaged if it therefore hits the material or
the worktable.
1. Make sure that the ultrasonic sensor is clean.
2. Select the lens type in the menu bar of JobControl®.
55
