Trotec Q400 User Manual

Maintenance
Y-AXIS RAIL CLEANING

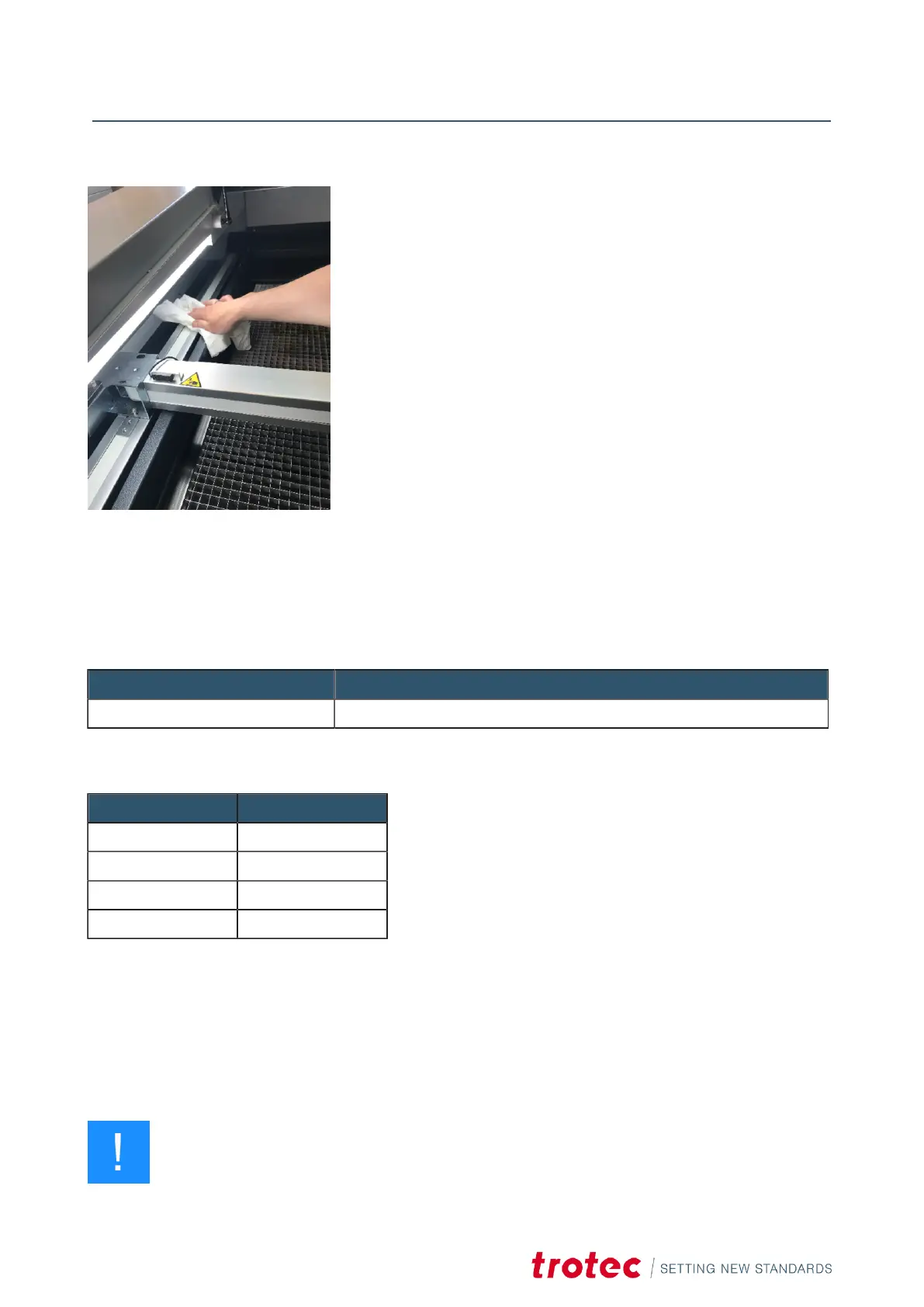

1. Clean the entire length of the y-axis rails with a cleaning
cloth.
Perform this procedure on both sides.
8.3.6 Lubricating motion system
LUBRICATION OF THE AXIS RAILS IN X AND Y-DIRECTION
Lubrication interval: 150 operating hours or 4 weeks
Lubrication quantity: 0.2 cm
3
(2 strokes with grease gun)
RECOMMENDED LUBRICANTS
Producer Type
HiWin G05
Fuchs RENOLIT LZR2H
Klüber Microlube GL 261
Mobil Mobilus EP2
RECOMMENDATION GREASE GUN:
HiWin GN-80M with lubrication adapter
A3: Hollow mouthpiece with lubrication adapter
For ball lubrication nipples roof DIN 3402, outside diameter 6mm.
Notice
Switch off the machine and disconnect it from the main power supply. Then lubricate the motion system.
