Operation
❶ Standby-button. LED On: Standby-Mode
❷ Status indicator laser beam. LED On: The machine is processing data.
❸ Stop-button
❹ Start/Pause/Repeat-button
LED is flashing slowly green (every two seconds). All covers are closed. Machine is ready.
LED is flashing fast green (twice per second). Minimum one cover is open.
LEDs light up blue and green. Data transfer complete. Pause-mode active. Job can be
started.
LED lights up green. Job is running.
❺ Working table control button Z
•
Up-button
•
Down-button
❻ Exhaust-button. LED On: Exhaust active
❼ Shi-button. Second operating level
❽ Laser head control button X/Y
•
travel distance in X-direction
•
travel distance in Y-direction
❾ Home-button. LED On: Temporary change of home position.

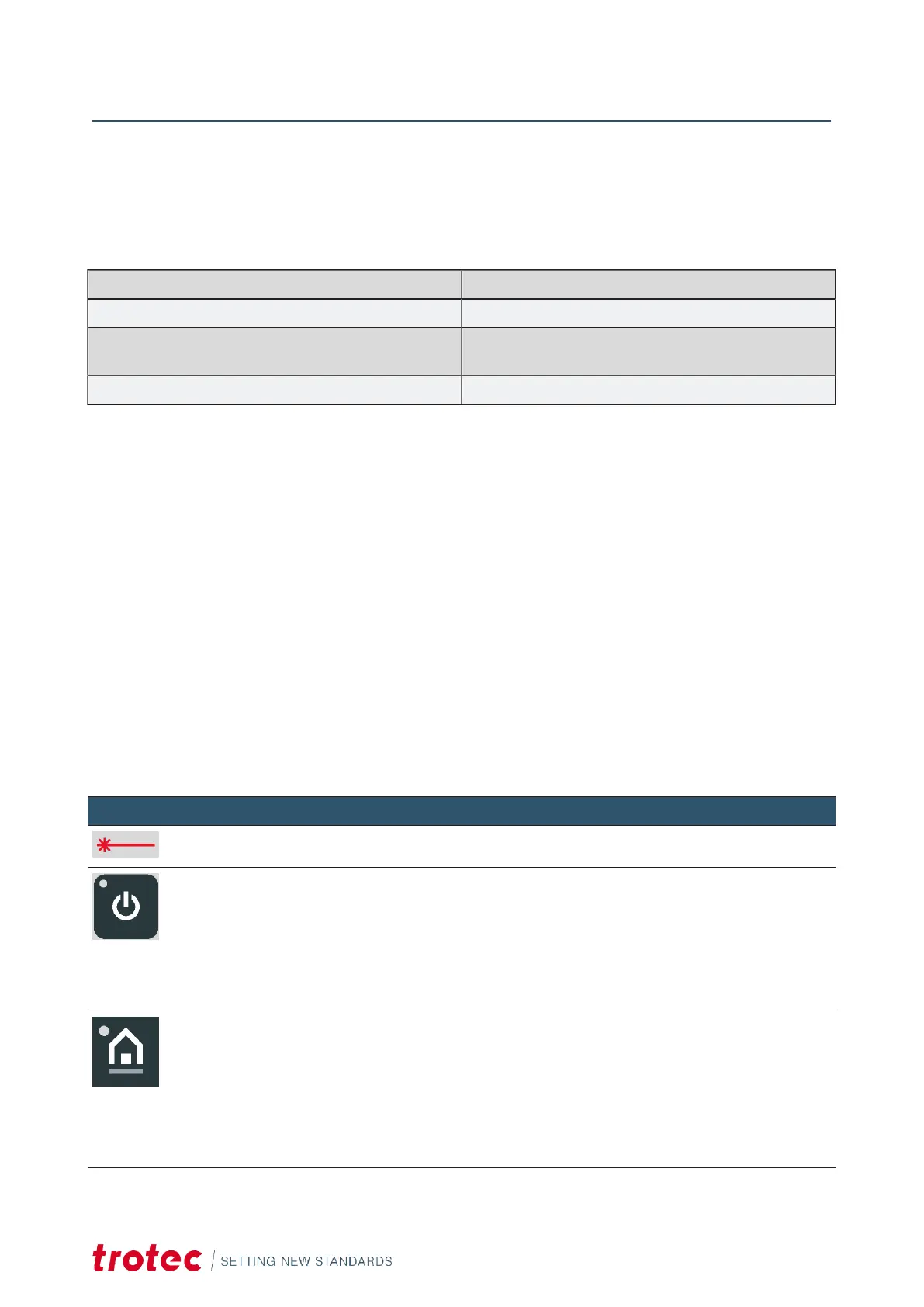

7.4.1 Description
Image Button Description
Status indicator LED On: The machine is processing or receiving data.
Standby-button LED On: Standby-mode
•
Press this button to switch to the Standby-mode.
•
Press the Standby-button while the working table is moving
up or down (e.g. by focus automatically).
The machine enters Standby-mode only aer finishing the
movement.
Home-button LED On: Temporary change of home position.
•
Press the Home-button for 3 seconds to temporarily define
the position of the laser head as home position (Marker in
JobControl®).
To deactivate the temporary home position press the shortcut
Shi-button + Home-button.
49
