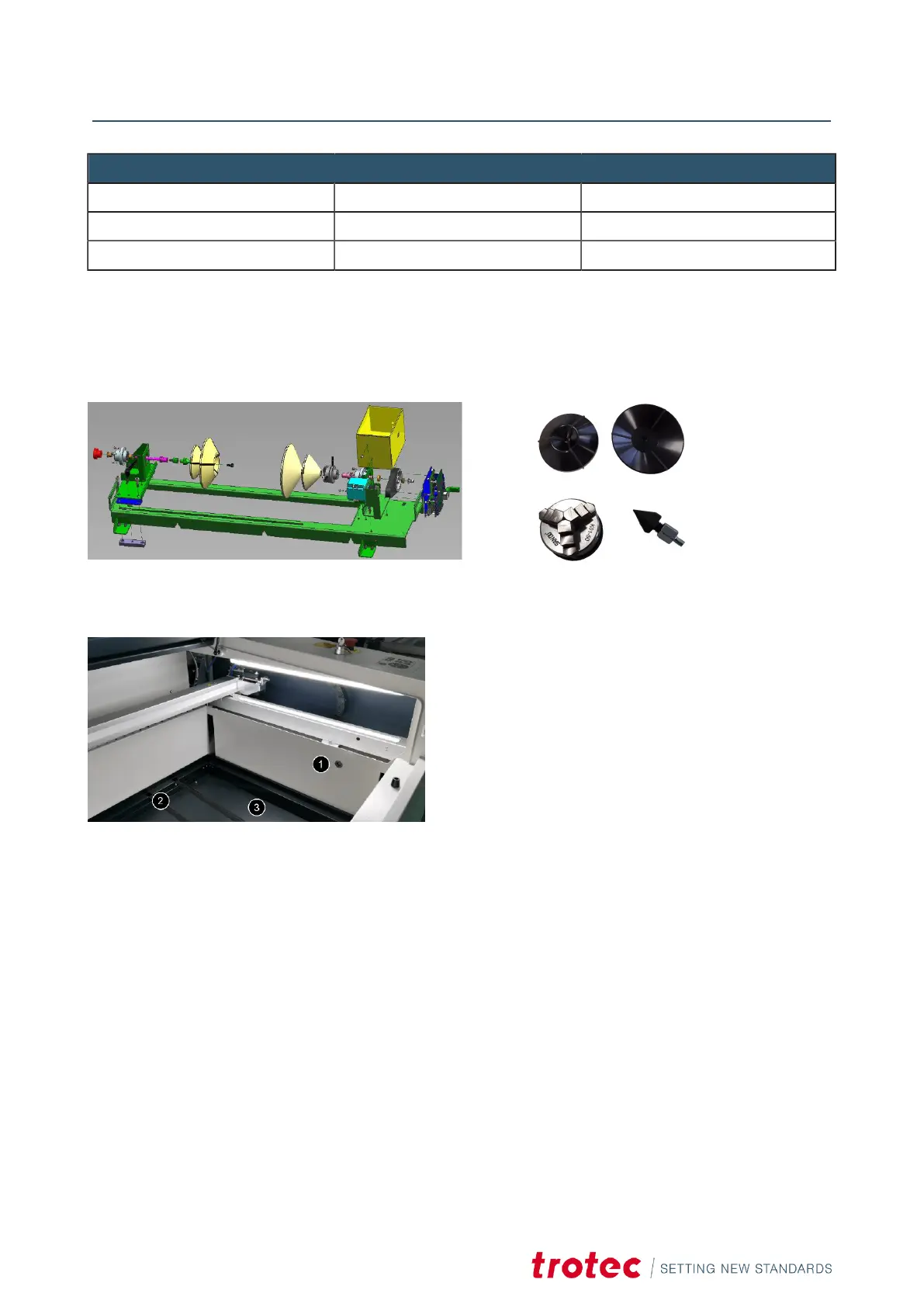

Operation
Chuck and workpiece size range
D150 chuck 80mm~150 mm 50mm~520mm
D100 chuck 30mm~100 mm 50mm~520mm
3-jaw chuck 5mm~33mm 30mm~515mm
Rotary attachment with cones:
Max. workpiece diameter: 5.9 inch (150 mm)
Max. workpiece length cones: 20.47 inch (520 mm)
Max. weight 1.600 g
Included in scope of delivery:
Konus 5,9 inch (150 mm)
Konus 3,9 inch (100 mm)
Three-jaw chuck and counter bearing 0,04-2
inch (1-50 mm)
INSTALLATION AND COMMISSIONING
❶ Connection for the rotary attachment
❷ Metal bars
❸ Table base frame
