Maintenanc
e
5.

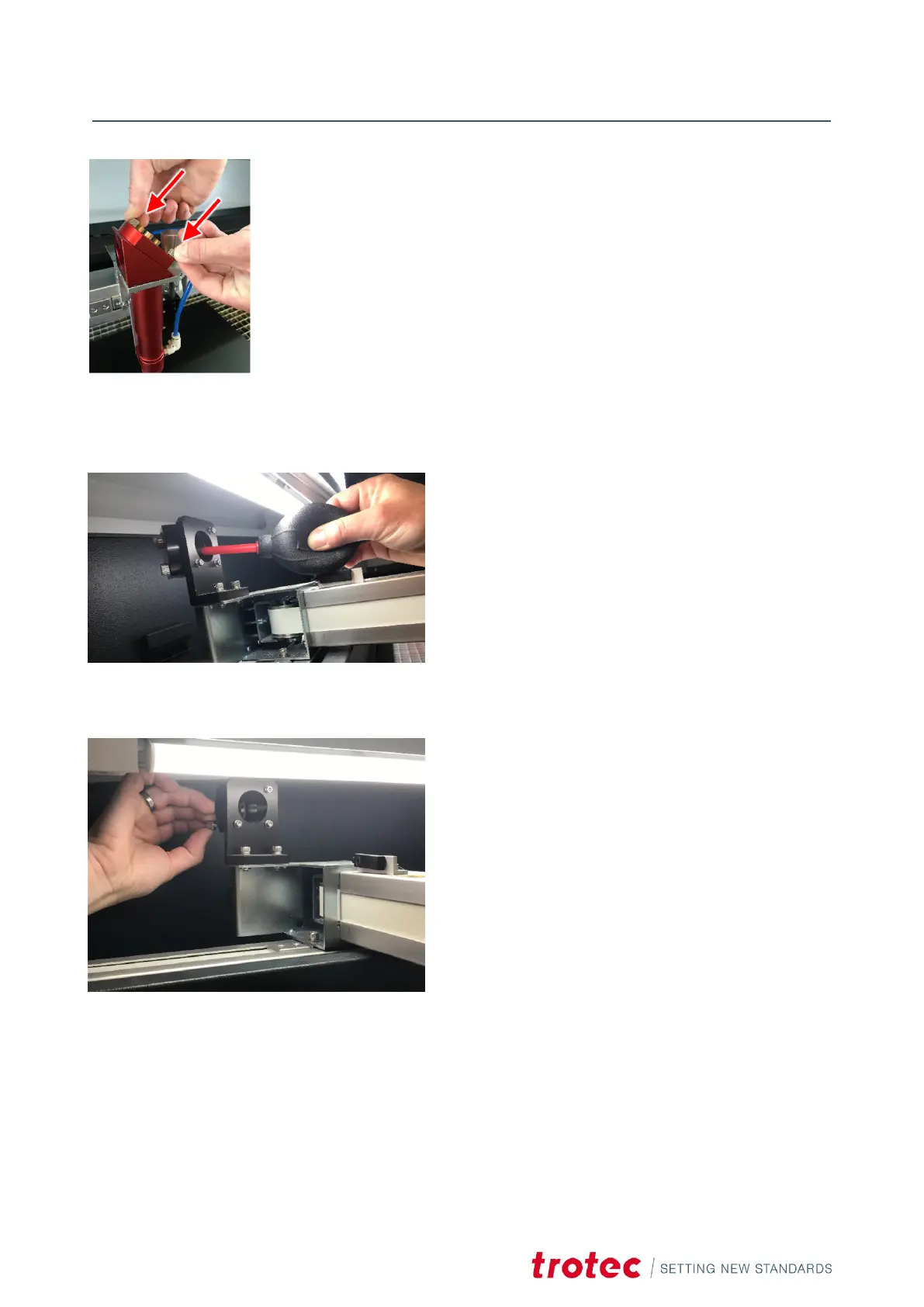

Mount the mirror again
and fix it with screws.
CLEANING MIRROR # ON THE AXIS
Quick cleaning with low dirt
Remove loose particles and dus
t with a bellows or
compr
essed air (according t
o ISO 8573:2010 Class 1)
Thorough cle
aning for heavy dirt
1.
Remove the screws from the mirr
or.
66
65
67
Table of Contents
Table of Contents
5
General Information
8
Information about this Manual
8
Explanation of Symbols
9
Liability and Warranty
10
Scope of Delivery (Standard Configuration)
11
Type Plate
12
Safety
13
General Safety Notes
13
Intended Use
13
Improper Use
13
Residual Risk
14
Machine Modification
14
Operating Modes
14
Applicable Safety Regulations
14
Laser Safety
16
Laser Classification
16
Areas of Responsibility
17
Responsibilities of the Operator
17
Responsibilities of the Operating Personnel
17
Requirements for Operating an Service Personnel
18
Machine Identification (Warning and Safety Stickers)
18
Safety Devices
20
Technical Protective Measures
20
Main Switch
20
Key Switch
21
Emergency Stop Button
21
Interlock Safety Switches
21
Acrylic Top Lid
21
Side Cover
21
In Case of Safety Device Malfunction
22
Secondary (Indirect) Hazards
22
Fire Hazard
22
Gases, Fumes and Dust
22
Reflection through Materials
23
Hazards Due to Damaged Optics
24
Protective Measures for Damaged Optics
24
In Case of Emergency
25
Technical Data
26
Exhaust System Requirements
27
Materials
29
Machine Overview
32
General Overview
32
Laser Power Potentiometer
33
Tables
33
Lens(Es)
34
Nozzles
34
Transport
35
Safety Notes
35
Delivery State
35
Temperature and Humidity
36
Required Tools for Unloading and Transport
37
Place of Storage
37
Transport Inspection and Reporting of Defects
37
Unpacking the Machine
37
Transport Protection for the Axes
39
Relocation of the Machine
39
Setup and Installation
41
For Your Safety
41
Temperature and Humidity
41
Space Requirements
42
Connections
42
Mains Connection
43
Connection the PC
43
Connection of the Air Assist
43
Connect the Water Cooling System
44
Operation
46
Before Commissioning
46
Installation and Replacement of the Laser Source
46
SoWare
46
Power On/Off
47
Control Panel
48
Description
49
Changing the Lens
52
Position of the Lens
52
Focusing Methods
54
Sonar Technology
54
Focus Tool
55
SoWare Focus
56
Options
57
Rotary Attachment (Option)
57
Jobcontrol Vision
60
Maintenance
62
Safety Notes
62
Maintenance Schedule
62
Cleaning
63
Machine
63
Optics in General
64
Lens
64
Mirror
65
Motion System
67
Lubricating Motion System
68
Troubleshooting
72
Error, Cause and Remedy
72
How to Create a Service File
73
Contact Details
75
Disassembly
76
Disposal
77
Appendix
78
Ce 8060 Q400
82
Datasheet_8060_Q400_Rev3
83
