Tru-Test WOW2 Service Manual

EziWeigh5i, EziWeigh6i, EziWeigh7i, WOW2, DAS WOW2
Issue 2, 7/2017 23

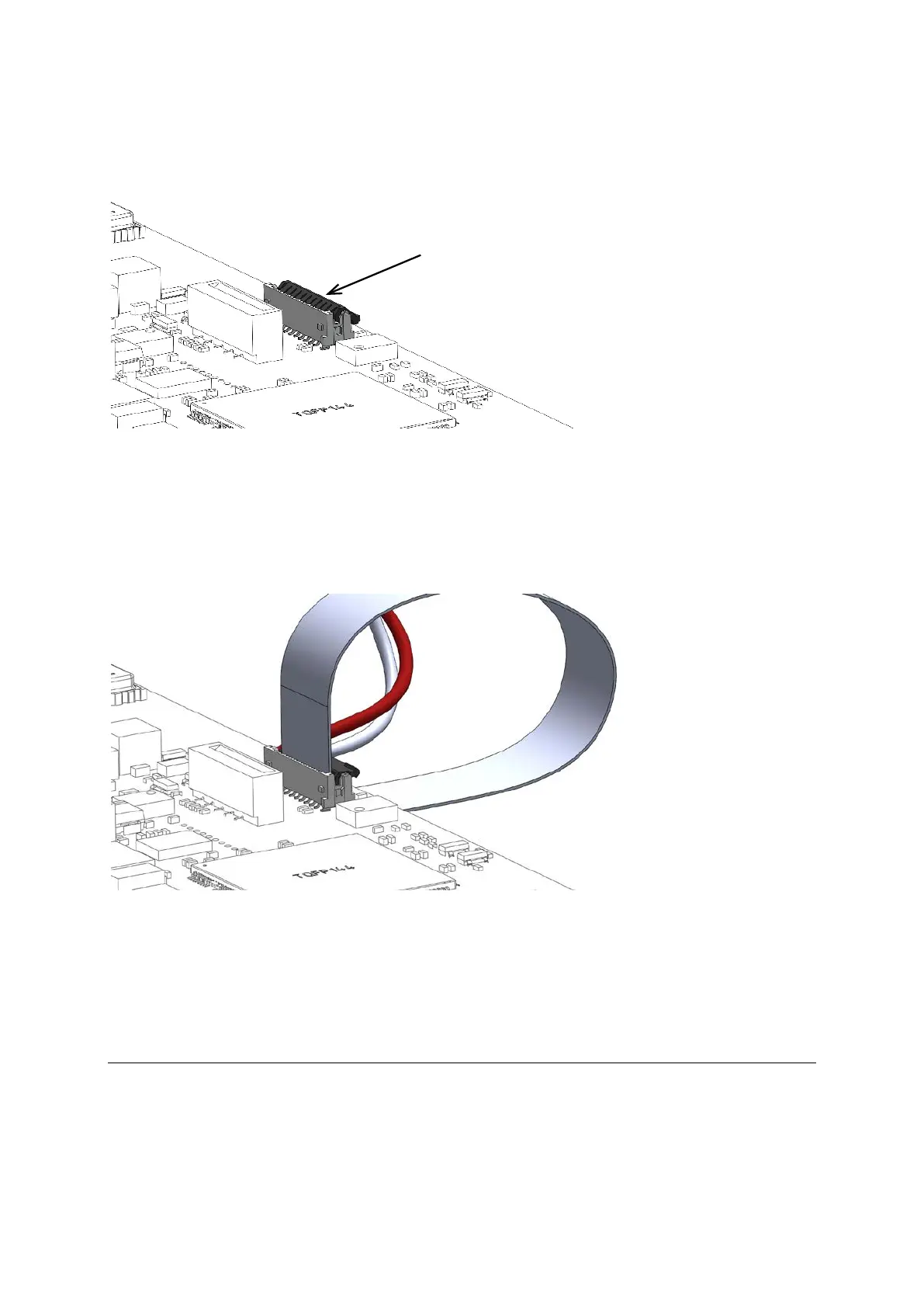

Locking bar on the
FPC connector open
Figure
3:
Dot matrix
LCD FPC
connector open
3 With your fingertips on either side of the FPC, gently slide the FPC out of the connector body
without bending or crumpling the FPC.
To connect the dot matrix LCD FPC:
1 Ensure that the locking bar is open, then gently slide the FPC into the FPC connector body.
Ensure that the FPC is connected properly (straight and correct way around). The FPC should be
straight without any bends or folds.
2 Lower the locking bar to close the lock.
Figure
4:
Dot matrix LCD FPC
connector closed.
All models - To disconnect and reconnect all FPCs other than the dot matrix LCD FPC (marked LCD 2 on the PCA)
1 With your fingertips on either side of the FPC, gently slide the FPC out of the connector body
without bending or crumpling the FPC.
2 Gently slide the FPC into the connector body. Ensure the FPC is connected properly (straight and
correct way around). The FPC should be straight without any bends or folds.
Protecting the case front
When servicing an indicator, place the indicator on a soft rubber mat to prevent it from being
scratched.
