Replacing the battery

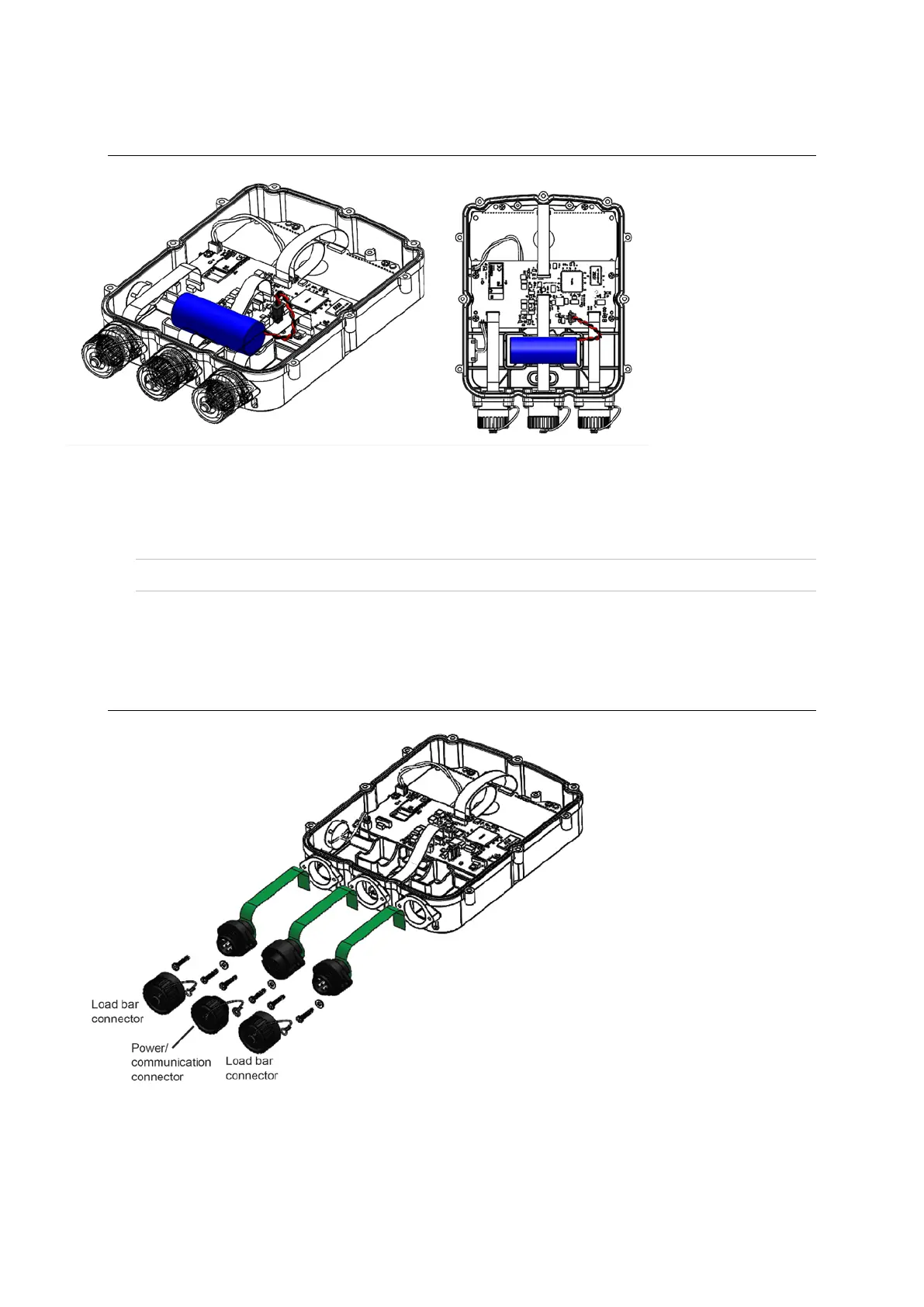

Figure
10:
Battery location
.
1 Remove the case back. See page 24.
2 Disconnect and remove the old battery.
3 Plug in the new battery and place into its cradle. The battery sits on top of the
power/communication FPC and the two keypad FPCs..
Tip: Write theinstallation date on the battery with a permanent marker.
4 Refit the case back. See page 24.
5 Check that the indicator operates and place it on charge for 4 hours. The indicator must be off
during charging to ensure that the battery is fully charged.
Replacing the load bar and power/communication connectors
Figure
11: Load bar and
Power/communic
ation
connectors
.
The procedure for replacing the load bar connectors and the power/communication connector is the
same. Both load bar connectors are identical.
The screws are longer than the PCA screws so do not get them mixed up.
