13

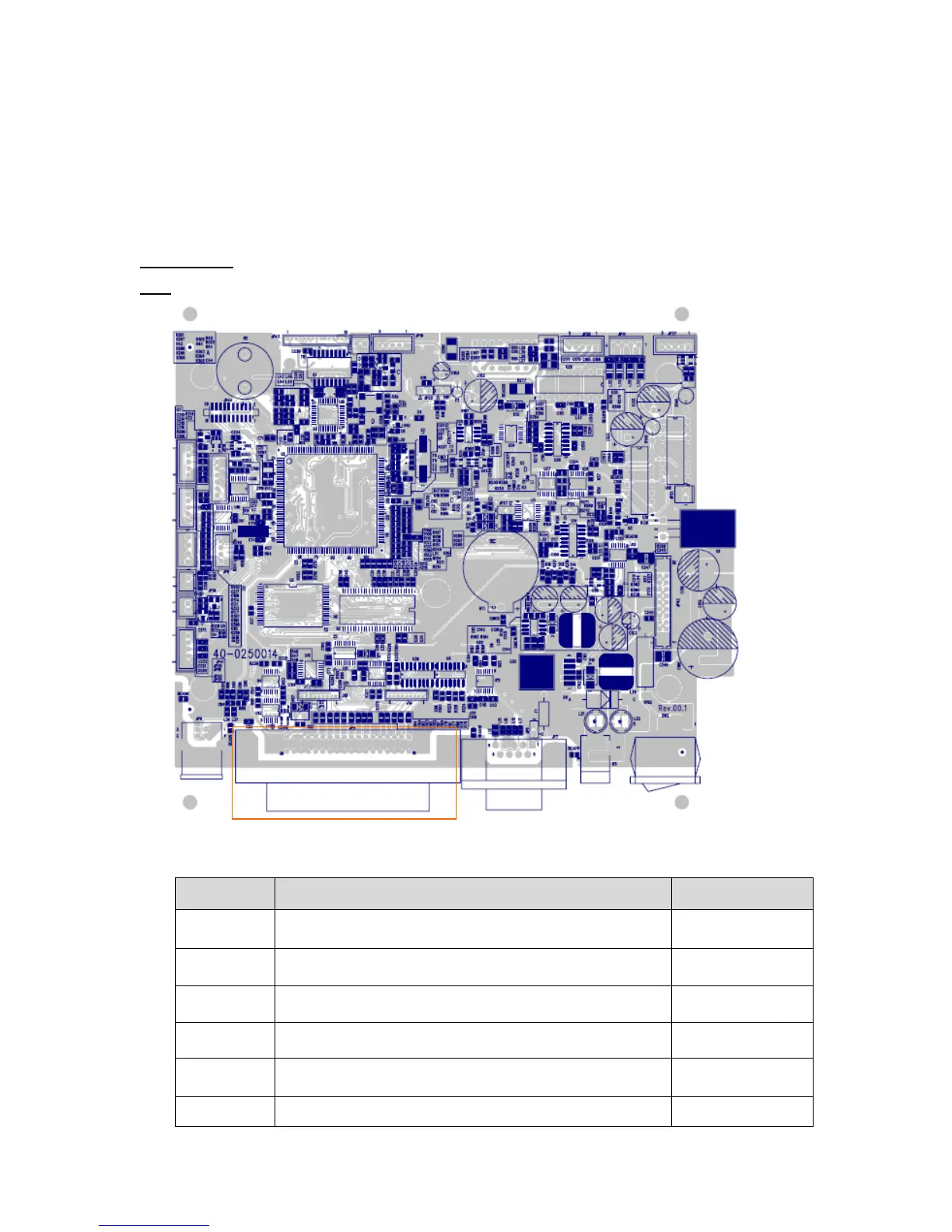

2. ELECTRONICS
2.1 Summar
y of Board Connectors
Main board
T
op
Connector
Description
Remark
1
Centronics port connector
JP4
2
USB connector
JP9
3
RS
-232C connector
JP7
4
Micro processor
U2
5
RFID module connector
JP36
6
Head open sensor connector
JP16
1
2
3
4
5
6
7
7
7
10
11
12
14
13
15
16
8
17
15
17
