TSC TDP-245 Plus Service Manual

26
3.6. Replacing Gap/Black Mark Sensor Assembly
1. Please refer to 3.2 for disassembling the lower cover.
2. Turn over the lower inner cover.
3. Remove the plastic laminate. (refer to 3.5)
4. Remove 1 screw from the gap / black mark sensor fixing plate.
5. Disconnect the gap/black mark sensor hardness.
6. Upside down the lower inner cover.
7. Remove the gap / black mark sensor.
8. Reassemble parts in reverse procedures.

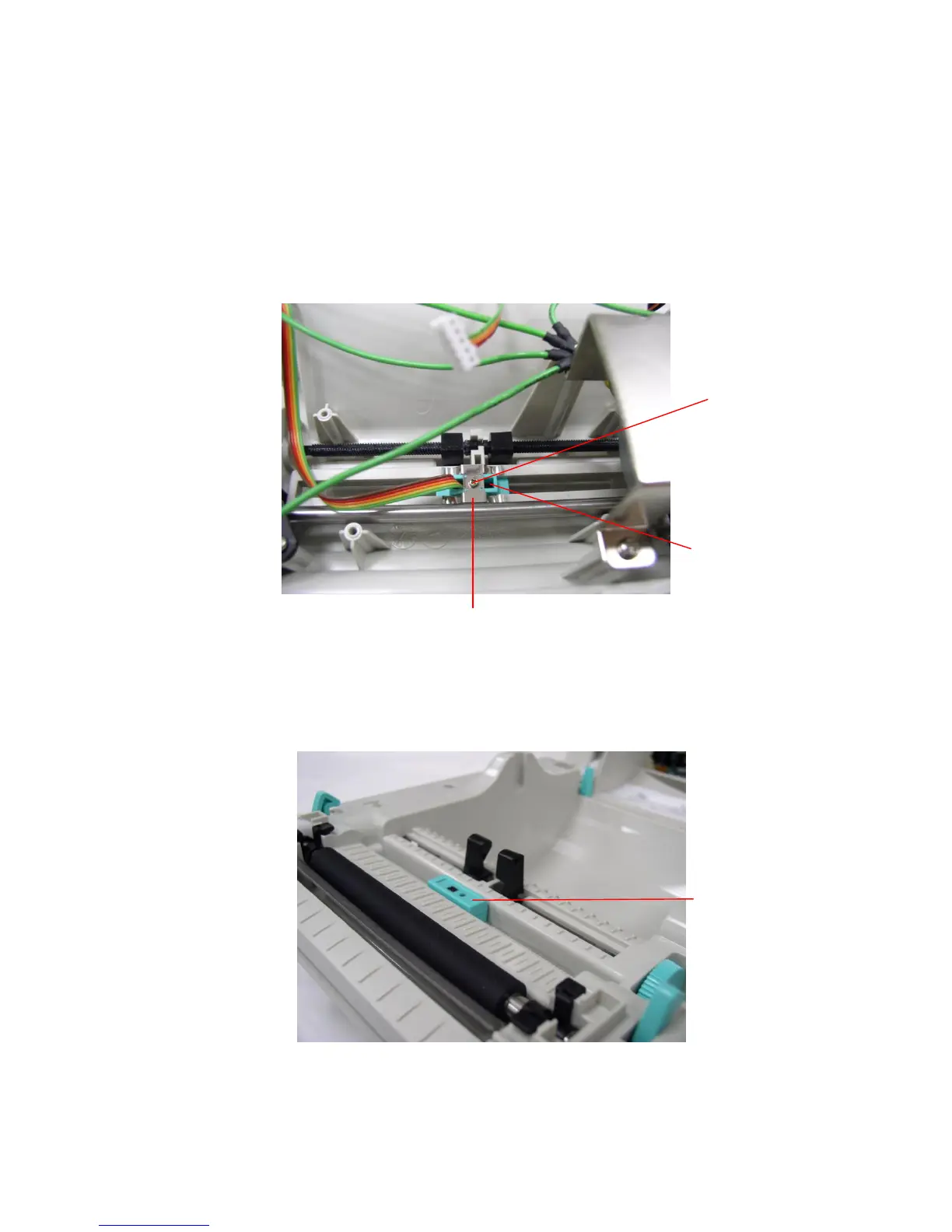

Gap/Black Mark Sensor
Gap / Black Mark Sensor
Screw
Gap / black mark sensor fixing plate
