TSC TDP-245 Plus Service Manual
4
of 1
of 1 rating
60 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
28

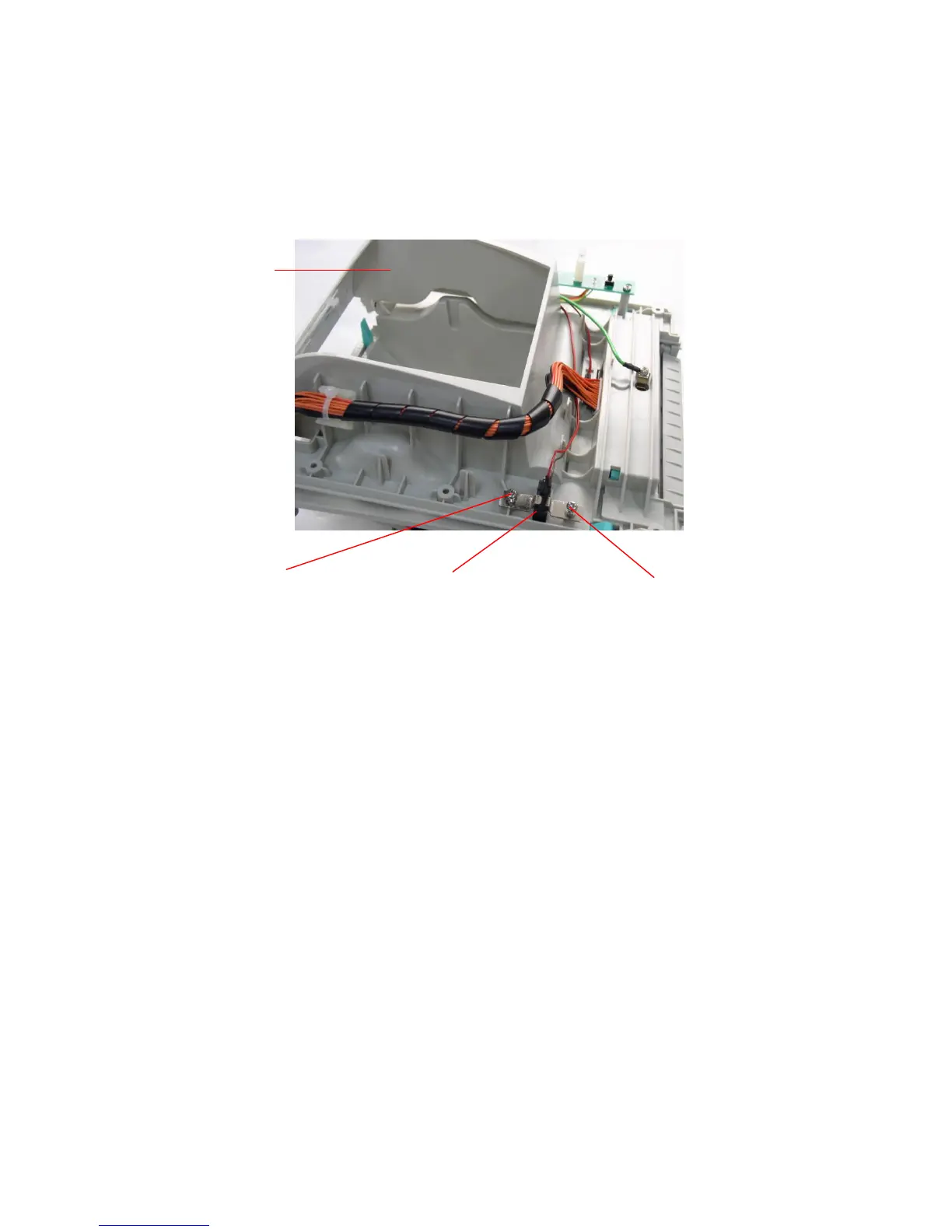

3.8. Replacing Head Open Micr
o Switch
1.
Please refer to 3.1 for disassembling the top cov
er and top inner cover
.
2.
Remove JP16 harness from the PCB.
3.
Remove 2 screws and remove the
head open micro switch
.
4.
Reassemble parts in r
everse procedures.
Screw
T
op Inner Cover
Screw
Head Open M
icro Switch
30
32
Table of Contents
Default Chapter
2
Table of Contents
2
1 Overview
4
Front View
4
Rear View
4
Specification
5
Printer (TDP-245 Plus)
5
Printer (TDP-247/ TDP-345)
8
Led
11
Button Operation
12
Supply Specification
15
Paper
15
2 Electronics
16
Summary of Board Connectors
16
Pin Configuration
19
3 REPLACE and INSTALL IMPORTANT PARTS
21
Replacing Top Cover
21
Replacing Lower Cover and Main PCB
22
Replacing Platen Assembly
24
Replacing the Stepping Motor Assembly and Stepping Motor
25
Replacing Label Guide Adjustment Knob Assembly
27
Replacing Gap/Black Mark Sensor Assembly
29
Replacing Print Head Module Assembly
30
Replacing Head Open Micro Switch
31
Replacing Feed Button and Feed Button PCB
32
Install SD Memory Card
33
Peel-Off Installation (Option) Assembly
35
Loading Label for Peel-Off Mode (Option)
38
Cutter Module Installation (Option)
40
Loading Label in Cutter Mode
42
Internal Ethernet Interface Installation (Option)
43
4 Power on Utilities
45
Gap/Black Mark Sensor Calibration
45
Gap/Black Mark Sensor Calibration；Self-Test；Dump Mode
46
Dump Mode
48
Printer Initialization
49
Black Mark Sensor Calibration
50
Gap Sensor Calibration
50
Skip AUTO.BAS
50
5 Gap and Black Mark Sensor Selection
51
6 Diagnostic Tool
52
Start the Diagnostic Tool
52
Troubleshooting
54
Update History
59
Other manuals for TSC TDP-245 Plus
User Manual
47 pages
Programming Manual
252 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the TSC TDP-245 Plus and is the answer not in the manual?
Ask a question
TSC TDP-245 Plus Specifications
General
Brand
TSC
Model
TDP-245 Plus
Category
Barcode Reader
Language
English
Related product manuals
TSC TDP-247
47 pages
TSC TDP-244 Series
47 pages
TSC TDP-225
41 pages
TSC TDP-225 Series
36 pages
TSC TTP-346M
47 pages
TSC TTP 246M
33 pages
TSC TTP-268M
85 pages
TSC TC200 Series
41 pages
TSC TE210 Series
48 pages
TSC TE310 Series
48 pages
TSC T-300 Series
47 pages
TSC TTP-244M Pro
35 pages
