3.3. Replacing Platen Assembly

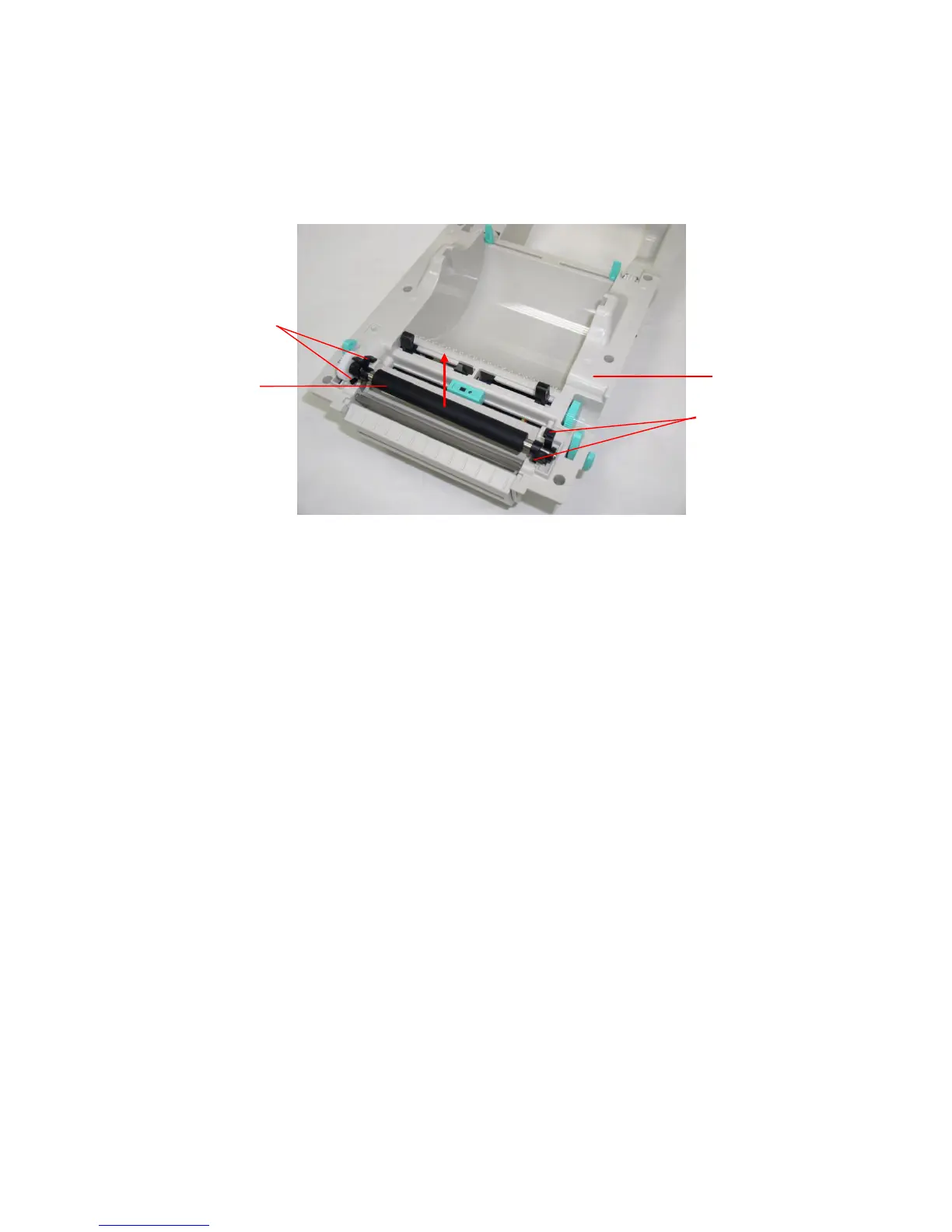

1. Squeeze two sides of platen assembly and take it out.
2. Replace a platen.
3. Reassemble parts in reverse procedures.
Platen
Assem
bly
Squeeze Here
Squeeze Here
Lower Inner Cover
