TSC TDP-245 Plus Service Manual

27
3.7. Replacing Print Head Module Assembly
1. Press right slot of the print head bracket and use a flat screwdriver to stick left
side of the printer head bracket then pick up the print head assembly.
2. Disconnect print head cables.
3. Reassemble parts in reverse procedures.

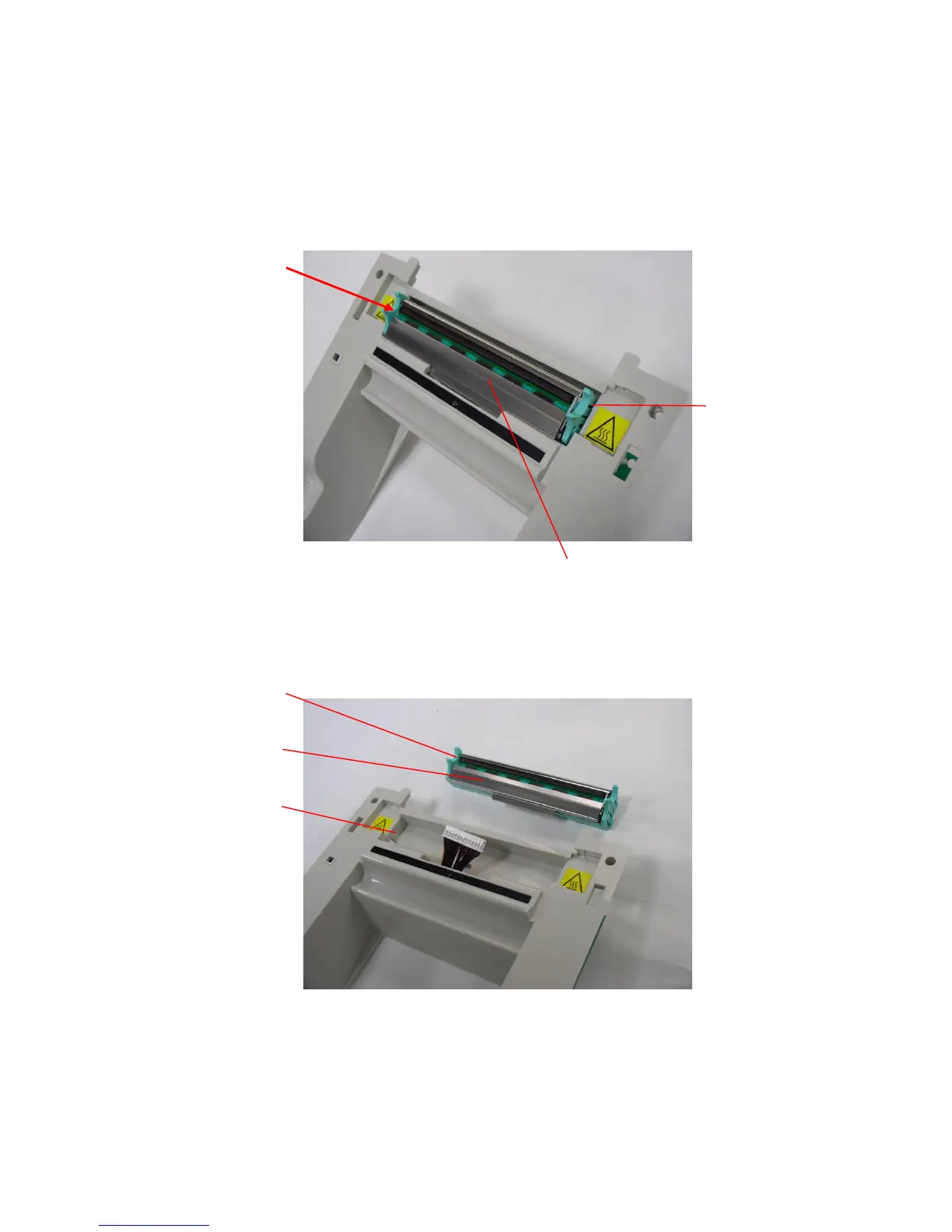

Print Head Mount
Print Head
Bracket
Bracket Concave
Stick Flat
Screwdriver Here
Print Head Module Assembly
