3.2. Replacing Lower Cover and main PCB

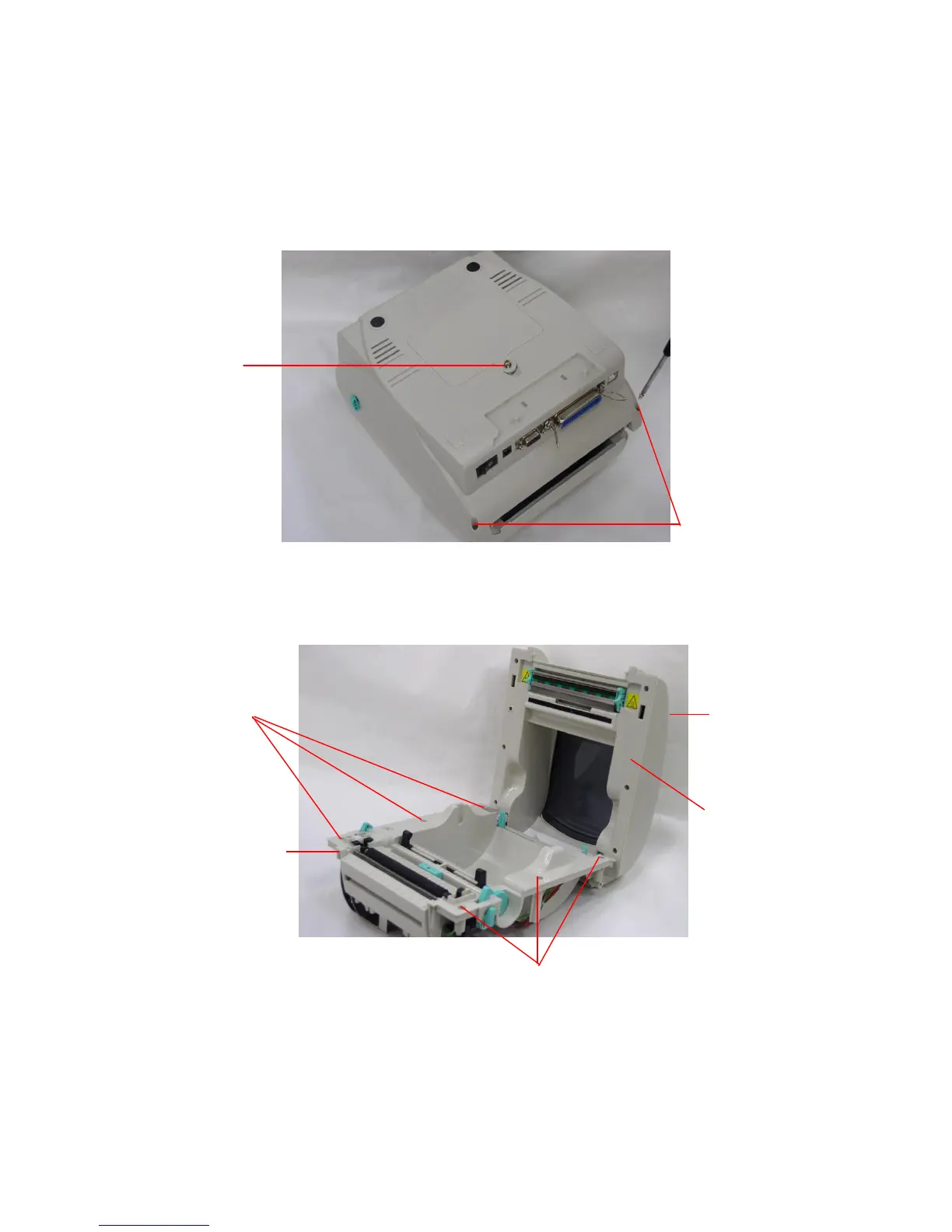

1. Upside down the printer.
2. Remove 3 screws on lower cover.
3. Remove 6 screws on lower inner cover.
Lower inner cover
Screws
Screws
Top Inner Cover
Top Cover
Screw
Screws
