20

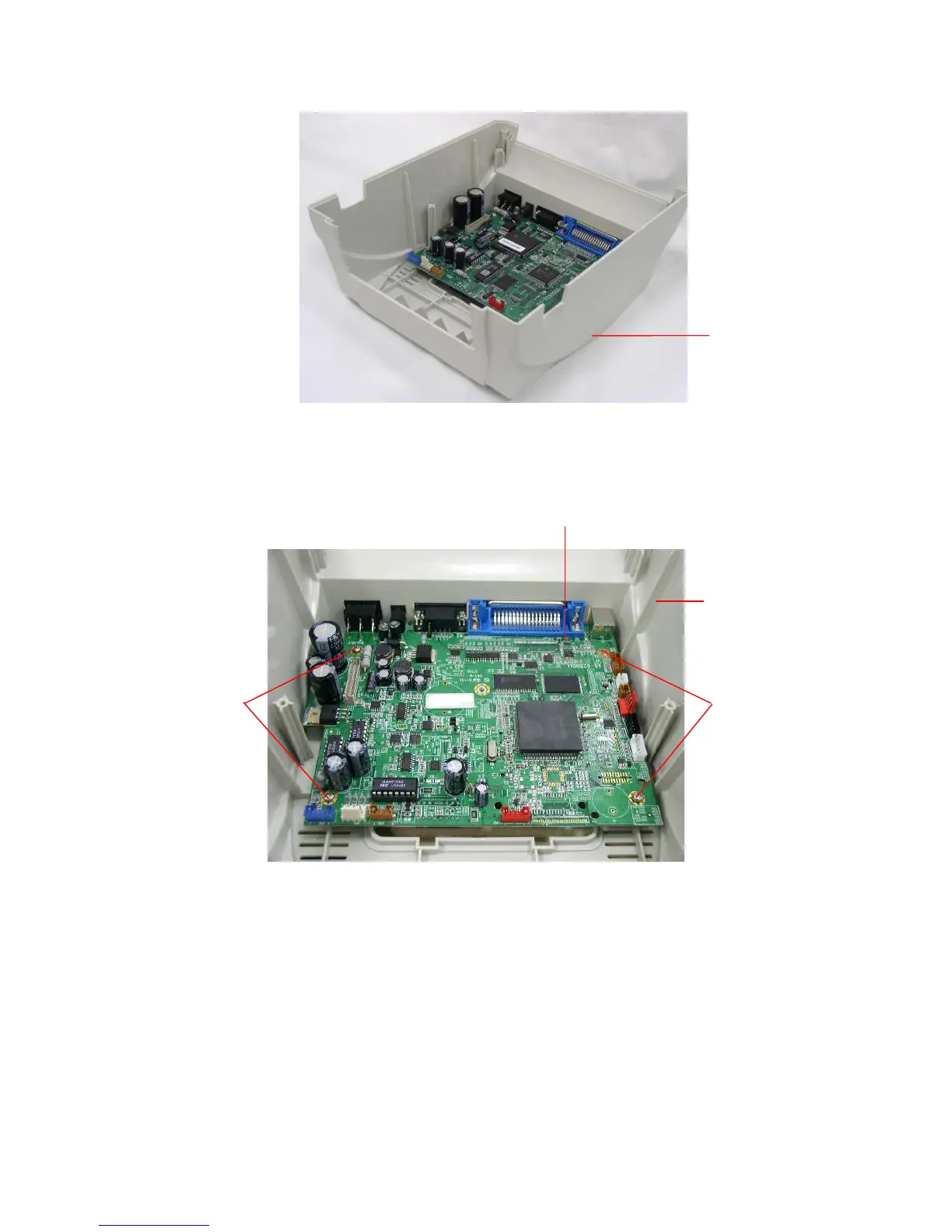

4. Remove all the harness connected to main board.
5. Remove 4 screws on PCB.
6. Replace the PCB or replace a new lower cover.
7. Reassemble parts in reverse procedures.
Lower Cover
Main Board
Screws
Screws
Lower Cover
