15
Pin
Description
V
oltage
1
GND
0V
2
Peel sensor
receiver
AD
0~3.3V
3
Peel sensor
emitter
Emitter on : 1.0~1.2V
Emitter off: 0V
4
Power
5V
5
Reserved
12
Power supply output (24V DC) connector
B3
13
Power switch
S
W
2
14
Print head connector
JP42
15
S
tepping motor connector
JP14
16
Ethernet connector (Factory option)
JP43
17
RS
-232 pin 9 +5V jumper
JP6

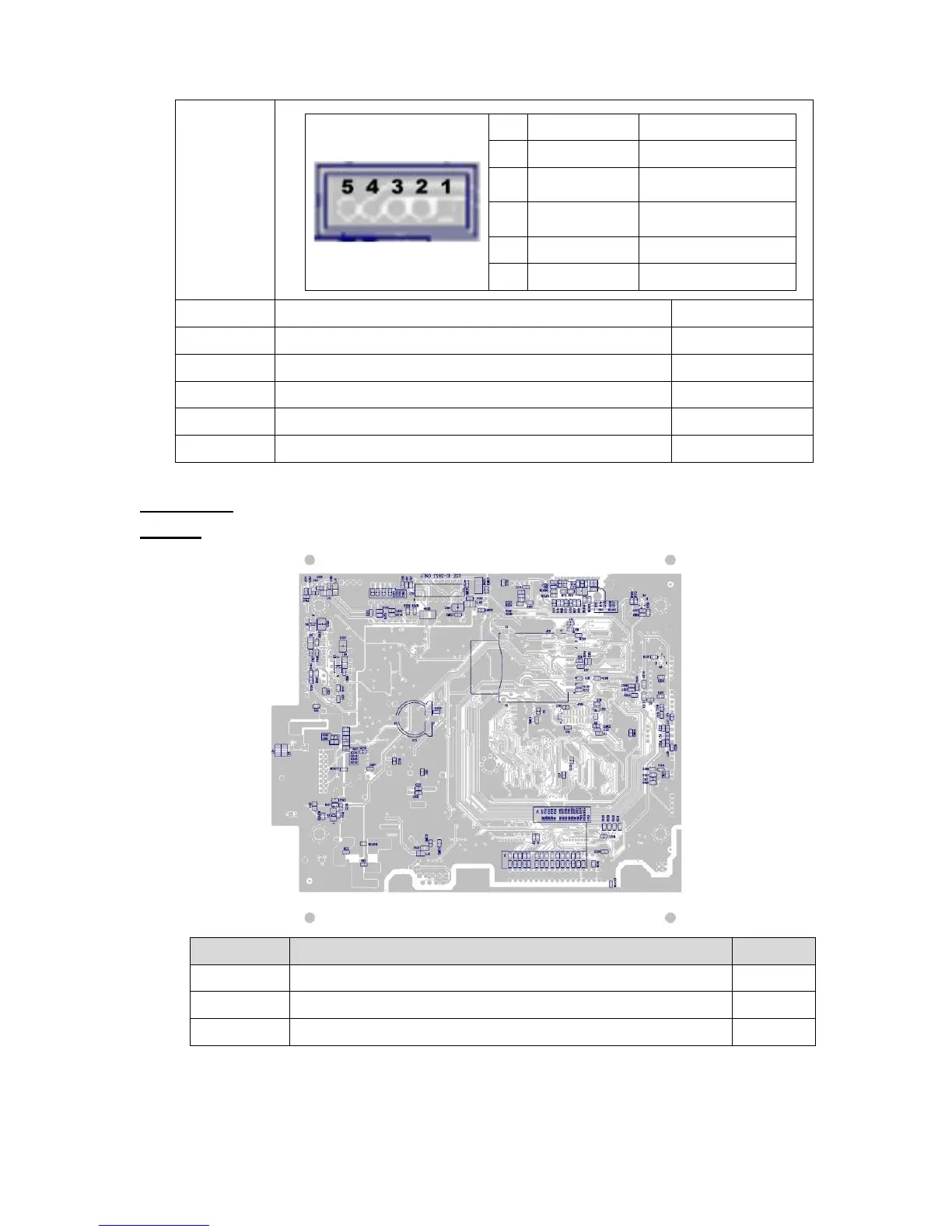

Main board
Bottom
Connector
Description
Remark
1
Cutter driver IC connector
U30
2
SD card slot
JP2
3
RTC battery
(Factory option)
BT2
1
2
3
17
19
Table of Contents
Default Chapter
2
Table of Contents
2
1 Overview
4
Front View
4
Rear View
4
Specification
5
Printer (TDP-245 Plus)
5
Printer (TDP-247/ TDP-345)
8
Led
11
Button Operation
12
Supply Specification
15
Paper
15
2 Electronics
16
Summary of Board Connectors
16
Pin Configuration
19
3 REPLACE and INSTALL IMPORTANT PARTS
21
Replacing Top Cover
21
Replacing Lower Cover and Main PCB
22
Replacing Platen Assembly
24
Replacing the Stepping Motor Assembly and Stepping Motor
25
Replacing Label Guide Adjustment Knob Assembly
27
Replacing Gap/Black Mark Sensor Assembly
29
Replacing Print Head Module Assembly
30
Replacing Head Open Micro Switch
31
Replacing Feed Button and Feed Button PCB
32
Install SD Memory Card
33
Peel-Off Installation (Option) Assembly
35
Loading Label for Peel-Off Mode (Option)
38
Cutter Module Installation (Option)
40
Loading Label in Cutter Mode
42
Internal Ethernet Interface Installation (Option)
43
4 Power on Utilities
45
Gap/Black Mark Sensor Calibration
45
Gap/Black Mark Sensor Calibration；Self-Test；Dump Mode
46
Dump Mode
48
Printer Initialization
49
Black Mark Sensor Calibration
50
Gap Sensor Calibration
50
Skip AUTO.BAS
50
5 Gap and Black Mark Sensor Selection
51
6 Diagnostic Tool
52
Start the Diagnostic Tool
52
Troubleshooting
54
Update History
59
