23
6.

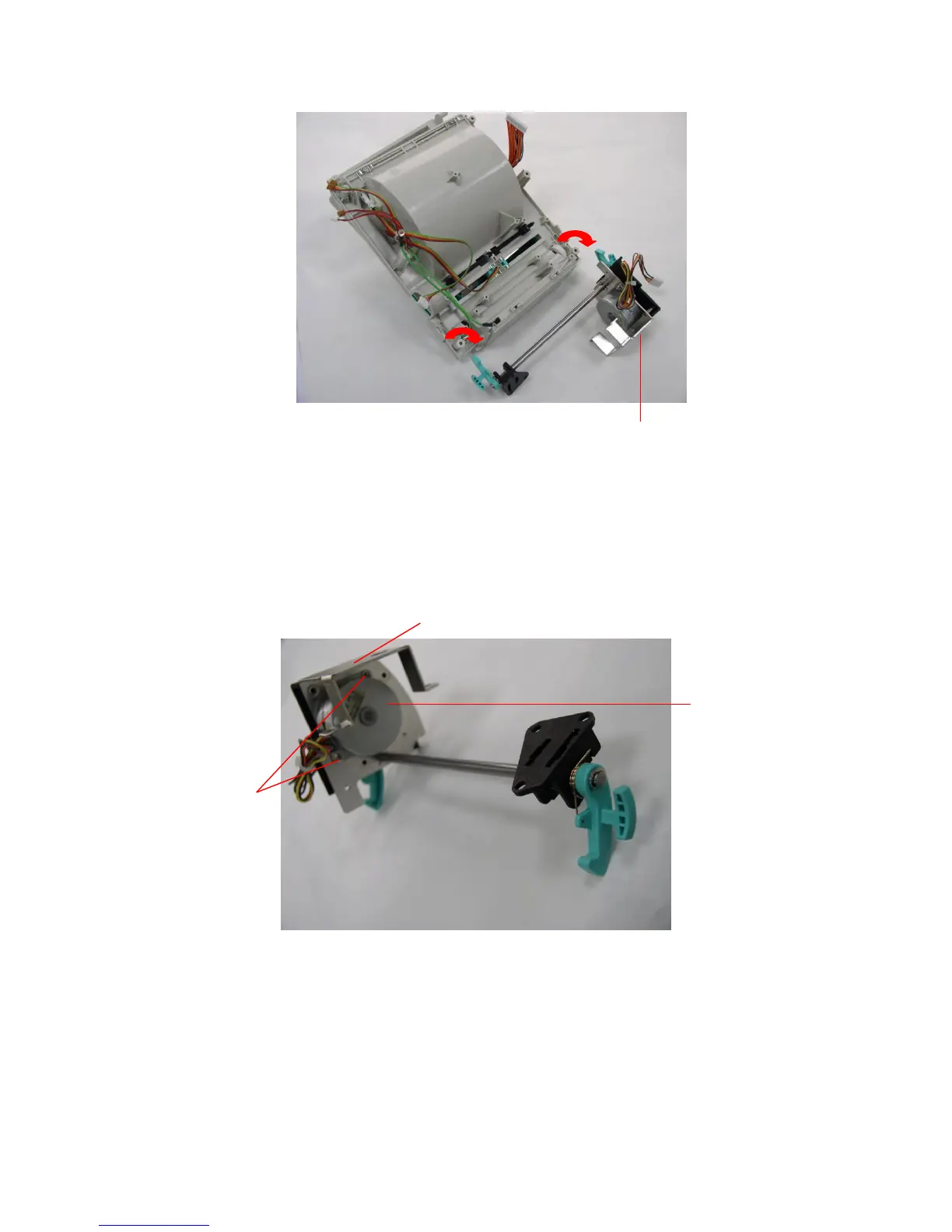

Remove 2 screws from the stepping motor
assembly; disconnect the stepping
motor from stepping motor bracket.
7.
Replace the stepping moto
r.
8.
Reassemble parts in r
everse procedures.
Screws
Stepping Motor
Stepping Motor A
s
sembly
Stepping Motor bracket
25
27
Table of Contents
Default Chapter
2
Table of Contents
2
1 Overview
4
Front View
4
Rear View
4
Specification
5
Printer (TDP-245 Plus)
5
Printer (TDP-247/ TDP-345)
8
Led
11
Button Operation
12
Supply Specification
15
Paper
15
2 Electronics
16
Summary of Board Connectors
16
Pin Configuration
19
3 REPLACE and INSTALL IMPORTANT PARTS
21
Replacing Top Cover
21
Replacing Lower Cover and Main PCB
22
Replacing Platen Assembly
24
Replacing the Stepping Motor Assembly and Stepping Motor
25
Replacing Label Guide Adjustment Knob Assembly
27
Replacing Gap/Black Mark Sensor Assembly
29
Replacing Print Head Module Assembly
30
Replacing Head Open Micro Switch
31
Replacing Feed Button and Feed Button PCB
32
Install SD Memory Card
33
Peel-Off Installation (Option) Assembly
35
Loading Label for Peel-Off Mode (Option)
38
Cutter Module Installation (Option)
40
Loading Label in Cutter Mode
42
Internal Ethernet Interface Installation (Option)
43
4 Power on Utilities
45
Gap/Black Mark Sensor Calibration
45
Gap/Black Mark Sensor Calibration；Self-Test；Dump Mode
46
Dump Mode
48
Printer Initialization
49
Black Mark Sensor Calibration
50
Gap Sensor Calibration
50
Skip AUTO.BAS
50
5 Gap and Black Mark Sensor Selection
51
6 Diagnostic Tool
52
Start the Diagnostic Tool
52
Troubleshooting
54
Update History
59
