8. Hold the lower cover and lift up the top cover open levers to separate the lower
inner cover and the lower cover. Arrange the cutter module cable through the bezel.

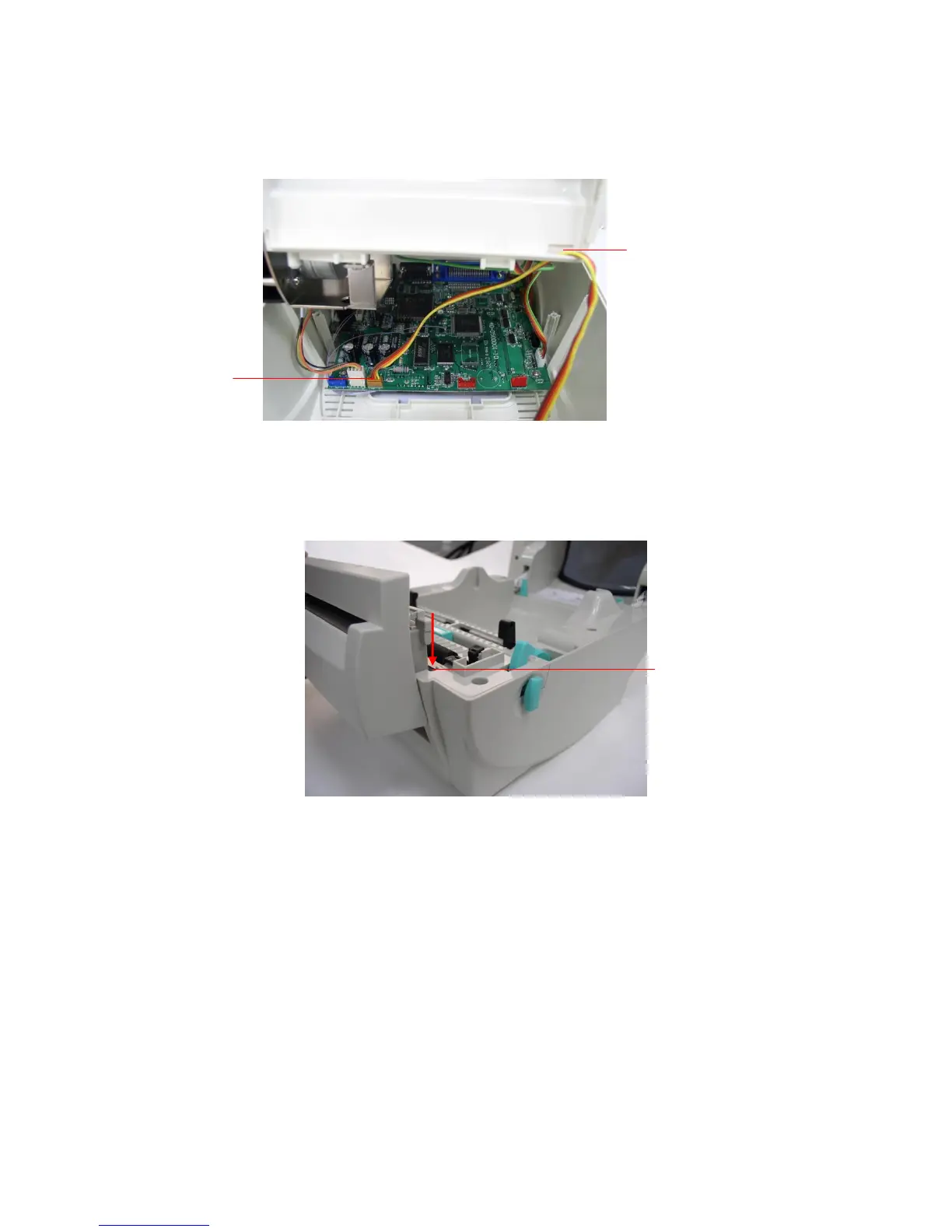

9. Connect the cutter module cable to the 4-pin socket JP38 on printer PCB.
10. Arrange the lower inner cover back to the lower cover.
11. Orient the cutter into the niches of the printer.
Cutter module installation
12. Use a screwdriver to screw down 6 screws on the lower inner case and 1 screw on
the back bottom of the printer.
13. Close the top cover.
