TSC TE210 Series Service Manual

17
TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

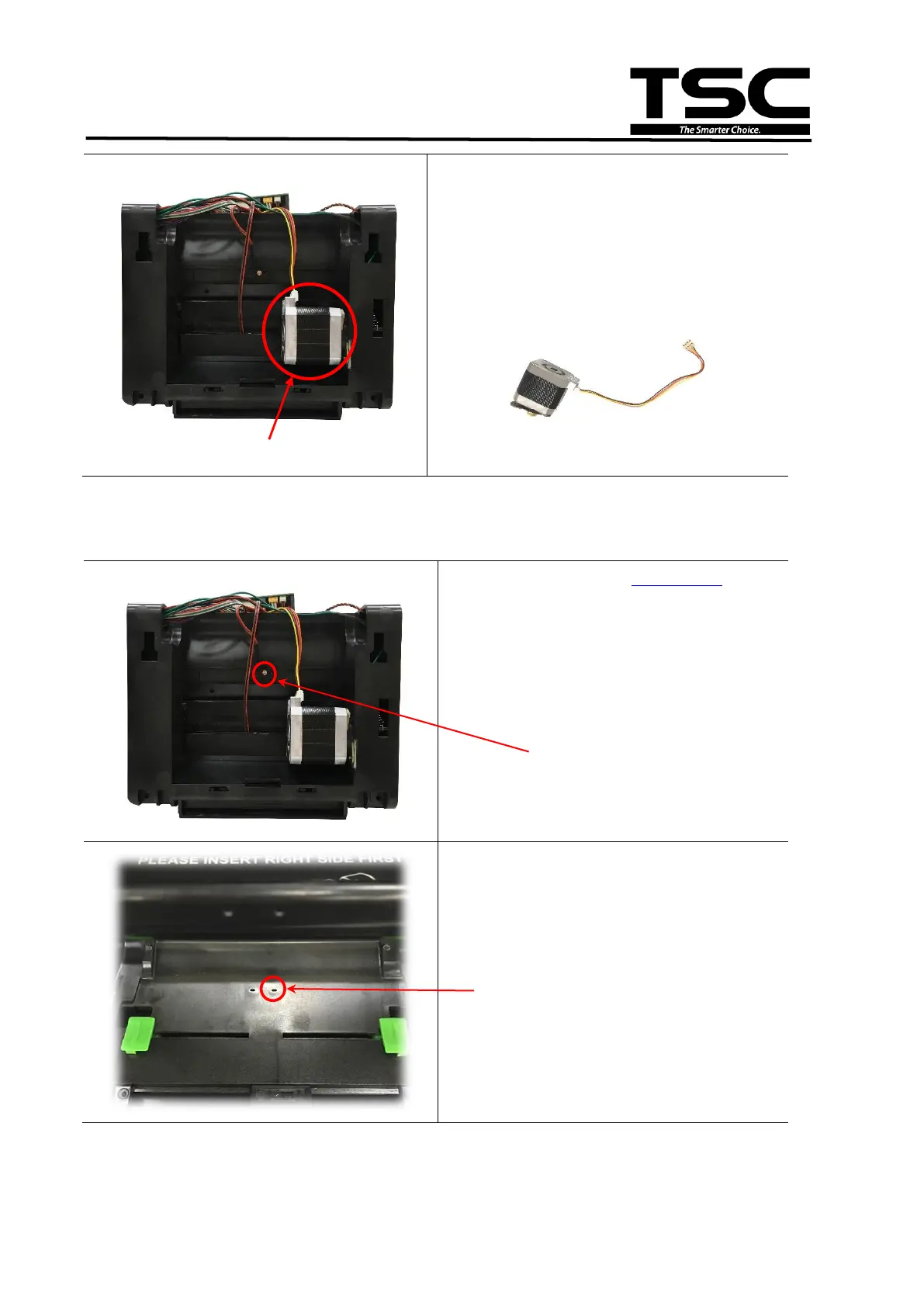

Stepping Motor
5. Disconnect the stepping motor
connectors on the main board.
6. Remove/replace the stepping motor
module.
7. Reassemble the parts in the reverse
procedure.
3.4 Replacing the Gap Sensor Module
1. Please refer to the section 3.1 to
remove the print engine.
2. Turn the print engine upside down
and remove the screw as indicated.
3. Remove/replace the gap sensor
(receiver).
Screw on Gap Sensor
(receiver)
Gap sensor (receiver)
(Fixed position, shift 4 mm to right)
Steeping motor module

TSC TE210 Series Specifications

General

Resolution	203 DPI
Print Speed	6 IPS
Print Method	Thermal transfer / Direct thermal
Processor	32-bit RISC CPU
Interface	USB 2.0, RS-232, Ethernet
Scan Rate	N/A (Barcode printer, not a barcode reader)
Barcode Resolution	N/A (Barcode printer, not a barcode reader)
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, Interleaved 2 of 5, Codabar, POSTNET
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	25 ~ 85% non-condensing (Operating)
Power Consumption	100-240V AC, 50/60Hz
