TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

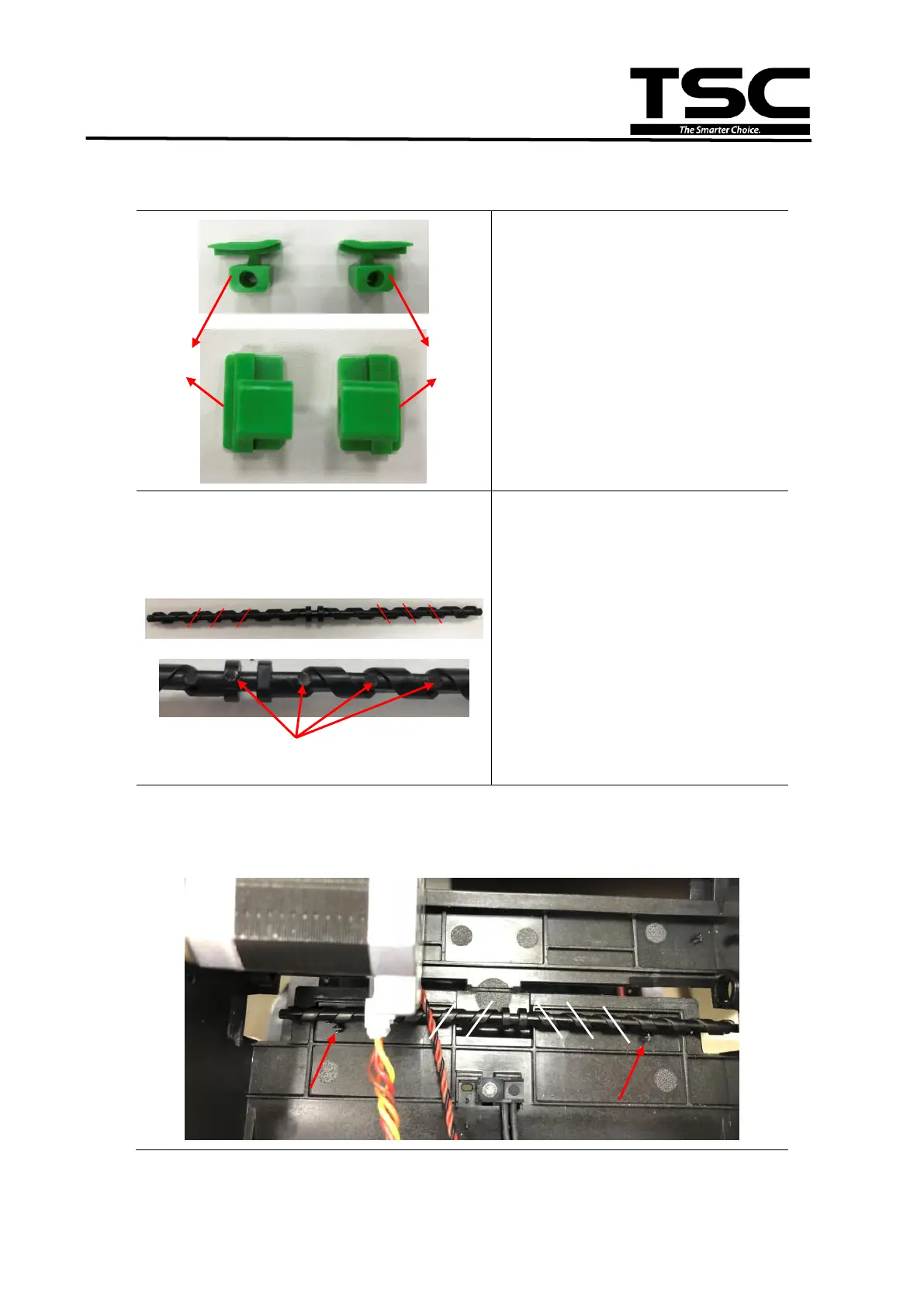

3.13 Replacing the Label Guide Module
1. Please check the direction of
label guide (L: Left; R: Right).
Label guide shaft:
2. Check label guide shaft
direction. The bottom side has
round marks as indicated.
3. Place the label guide shaft as below. The round mark is at the bottom
side. Please notice about the placement position 1, 2, and 3 at right side
and left side.
L (Left)
R (Right)
Bottom of label guide shaft
1
2
3
1
2
