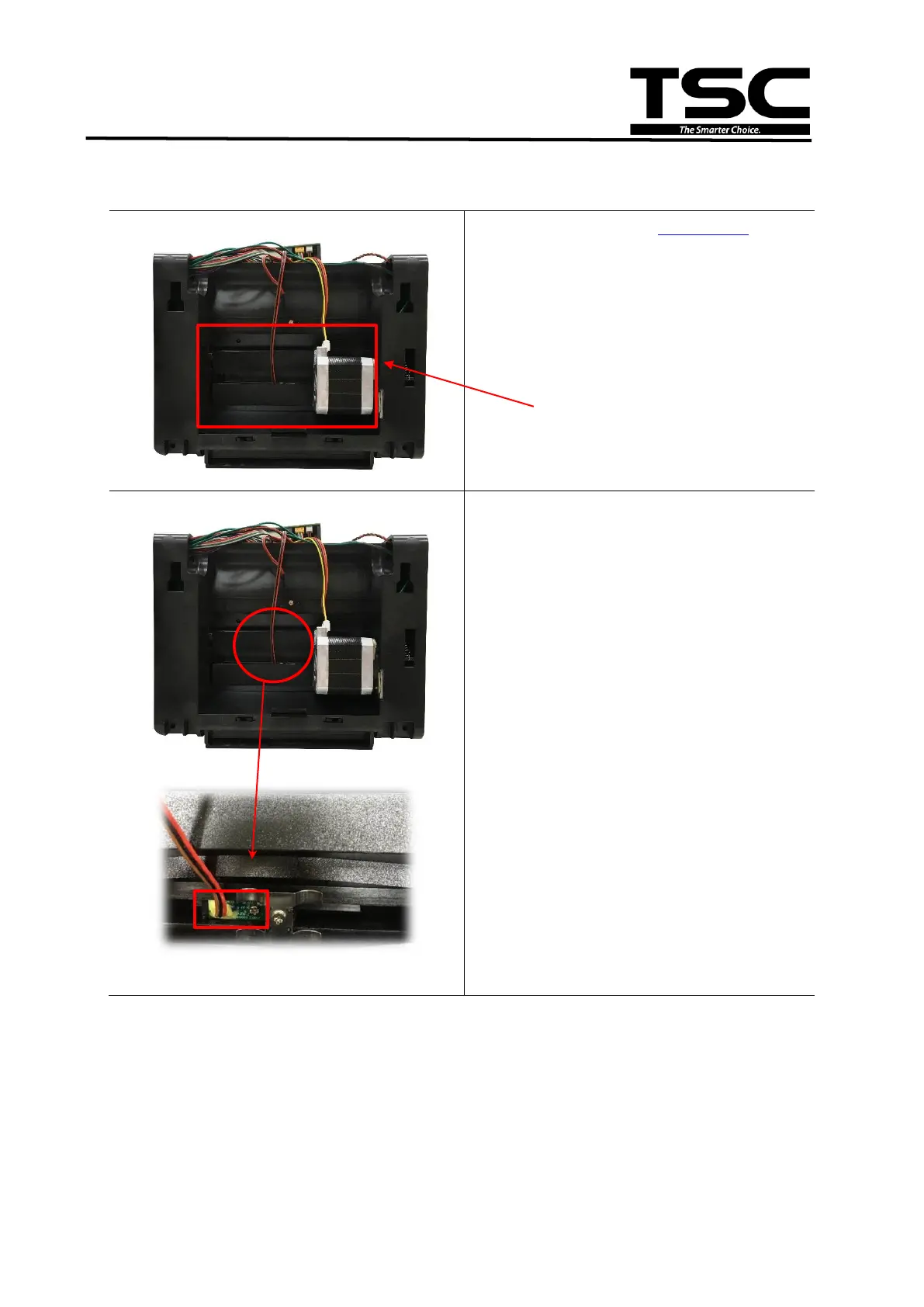

3.5 Replacing the Black-mark Sensor Module
1. Please refer to the section 3.3 to
remove the stepping motor module.
2. Open the Mylar film cover and
remove the screw on the black-mark
sensor module.
3. Remove/replace the black-mark
sensor module.
Mylar film
Black-mark sensor
