TSC TE210 Series

5
TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

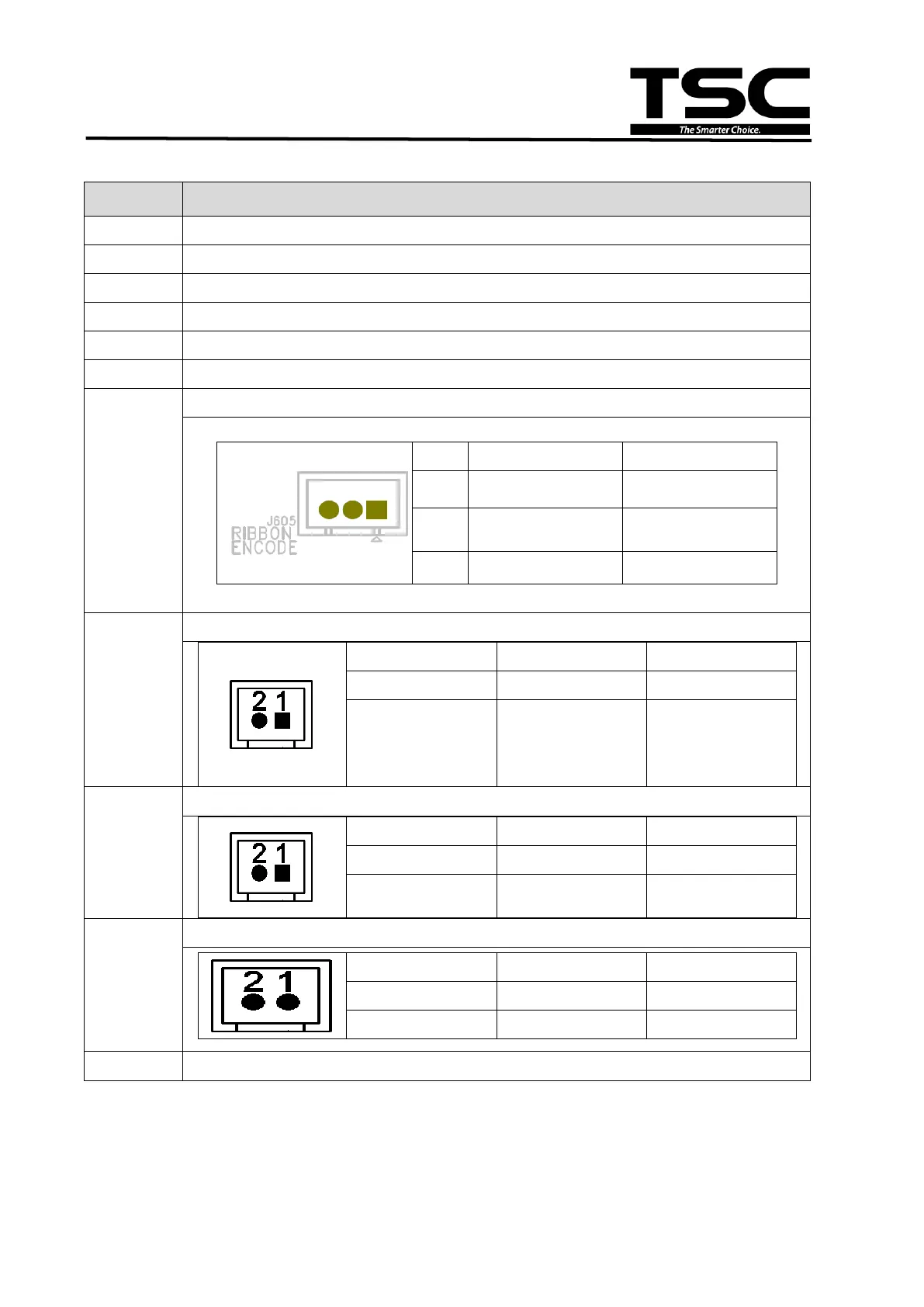

Connector
Description
1
Switch
2
DCIN
3
USB connector
4
SDRAM
5
MCU
6
BT connector
7
Ribbon Encode connector
Pin
Description
Voltage
1
Power
3.3V
2
Encoder signal
3.3V
3
GND
0V
8
Gap sensor emit connector
Pin
Description
Voltage
1
Power
3.3V
2
Gap sensor
emitter
Emitter on :
2.1~2.3V
Emitter off:
2.6~2.8V
9
Gap sensor receive connector
Pin
Description
Voltage
1
Power
3.3V
2
Gap sensor
receiver AD
0~3.3V
10
ESD_GND_PIN
Pin
Description
Voltage
1
GND
0V
2
GND
0V
11
BM sensor connector
