32

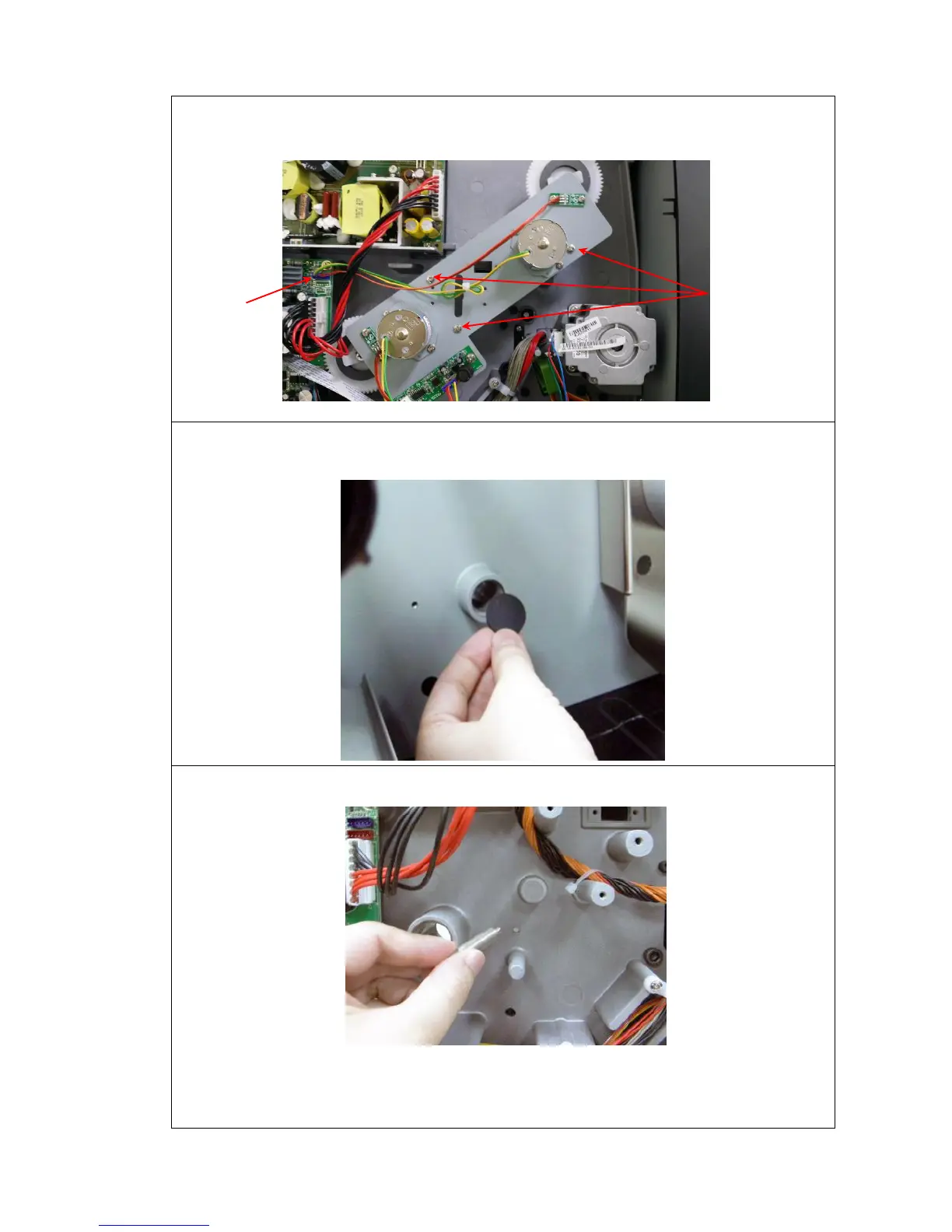

4. Remove 3 screws and 1 connector to remove the DC motor assembly. (DC
motor fixing plate)
5. Open the right side printer cover. Remove the dustproof cover from internal
rewinder spindle reserve hole.
6. Install the pillar to the printer. Please refer to the above fig.
Screws
Connector
(Blue)
