33

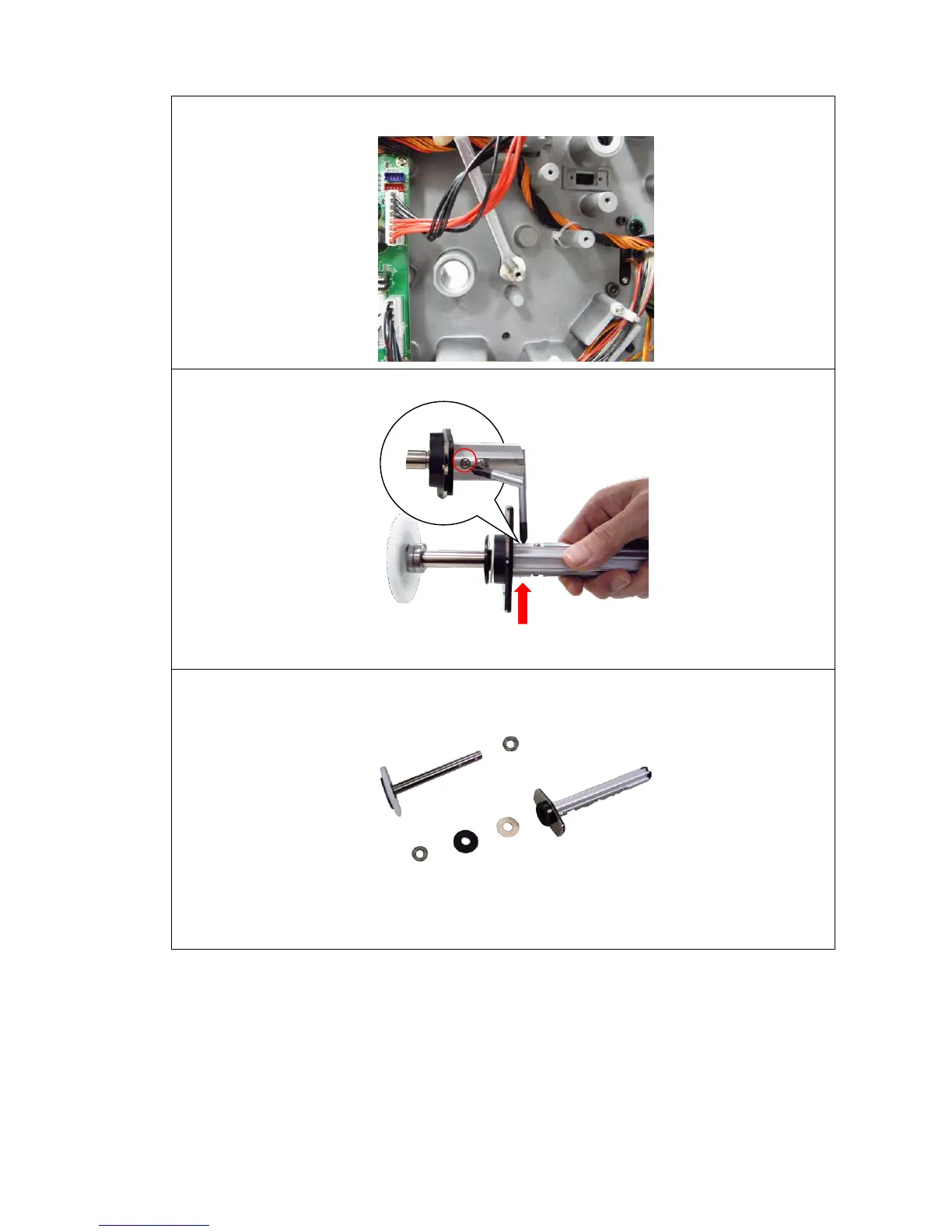

7. Use wrench (No. 7) to fasten the pillar.
8. Remove 2 screws from the internal rewinder spindle.
9. Separate the internal rewinder spindle and shaft as picture above.
