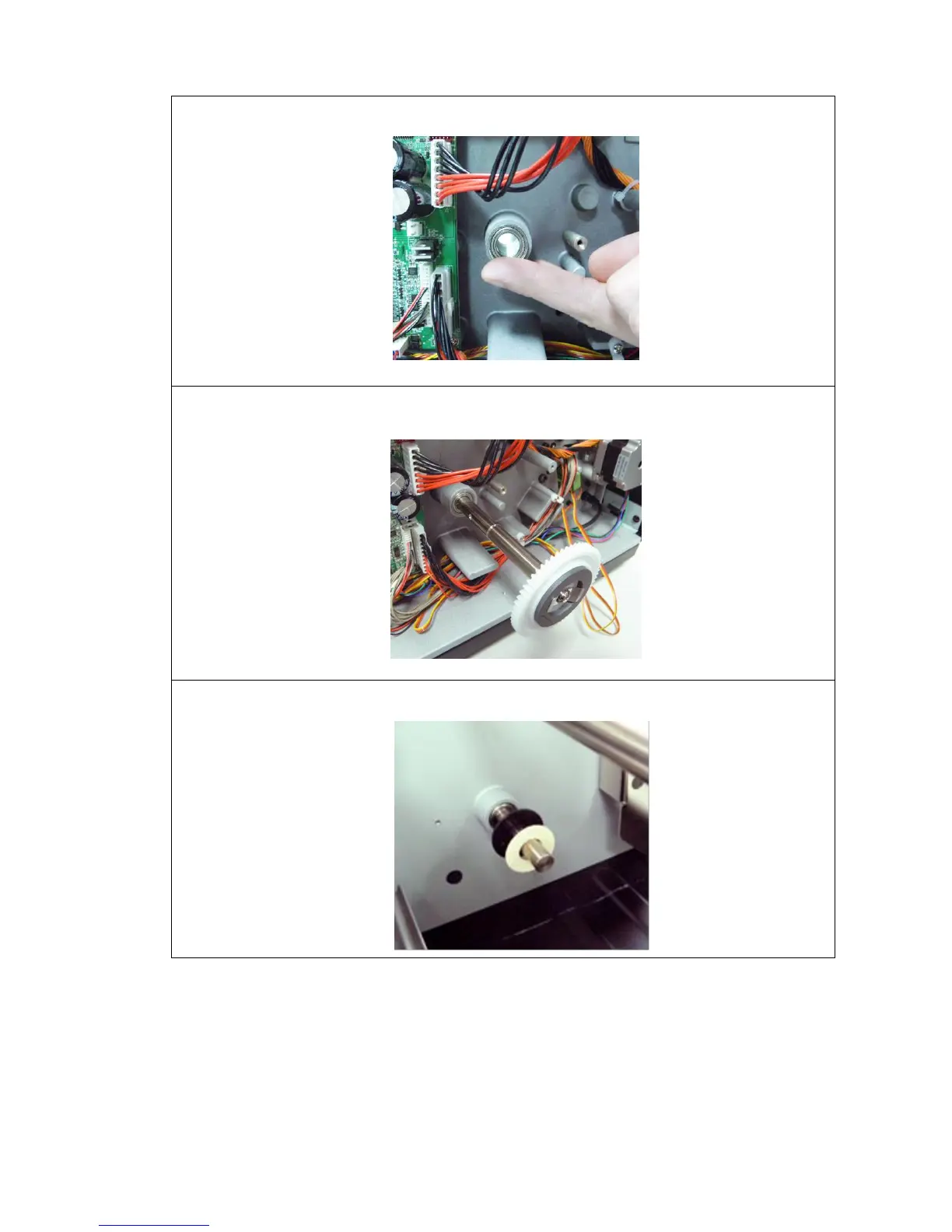

10. Put the bearing into the internal rewinder shaft hole. (Left side)

11. Put the bearing into the internal rewinder shaft hole then insert the gear shaft

into it.

12. Put the bearing (right side), felt fabric and gasket onto the shaft.
