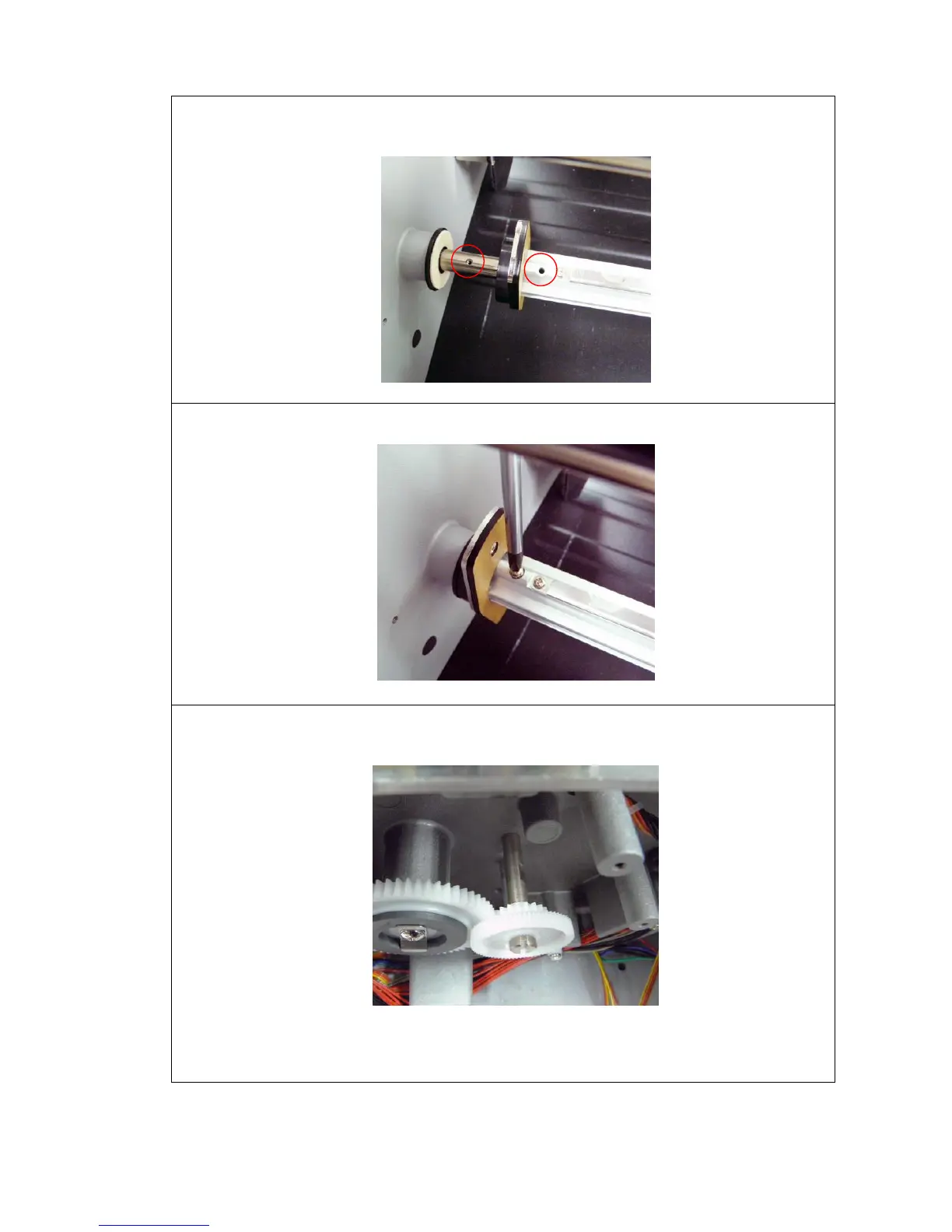

13. Insert the internal rewinder spindle to the shaft and fasten the screw.

Note: The spindle screw hole must be in alignment with the screw hole on

rewinder shaft

14. Rotate the spindle 180 degrees and fasten the other screw at the internal

rewinder spindle.

15. Use the screw (#2) to fasten the gear into the pillar by slotted screwdriver.

Note: Turn the gear to confirm that it works with internal rewinder gear.
