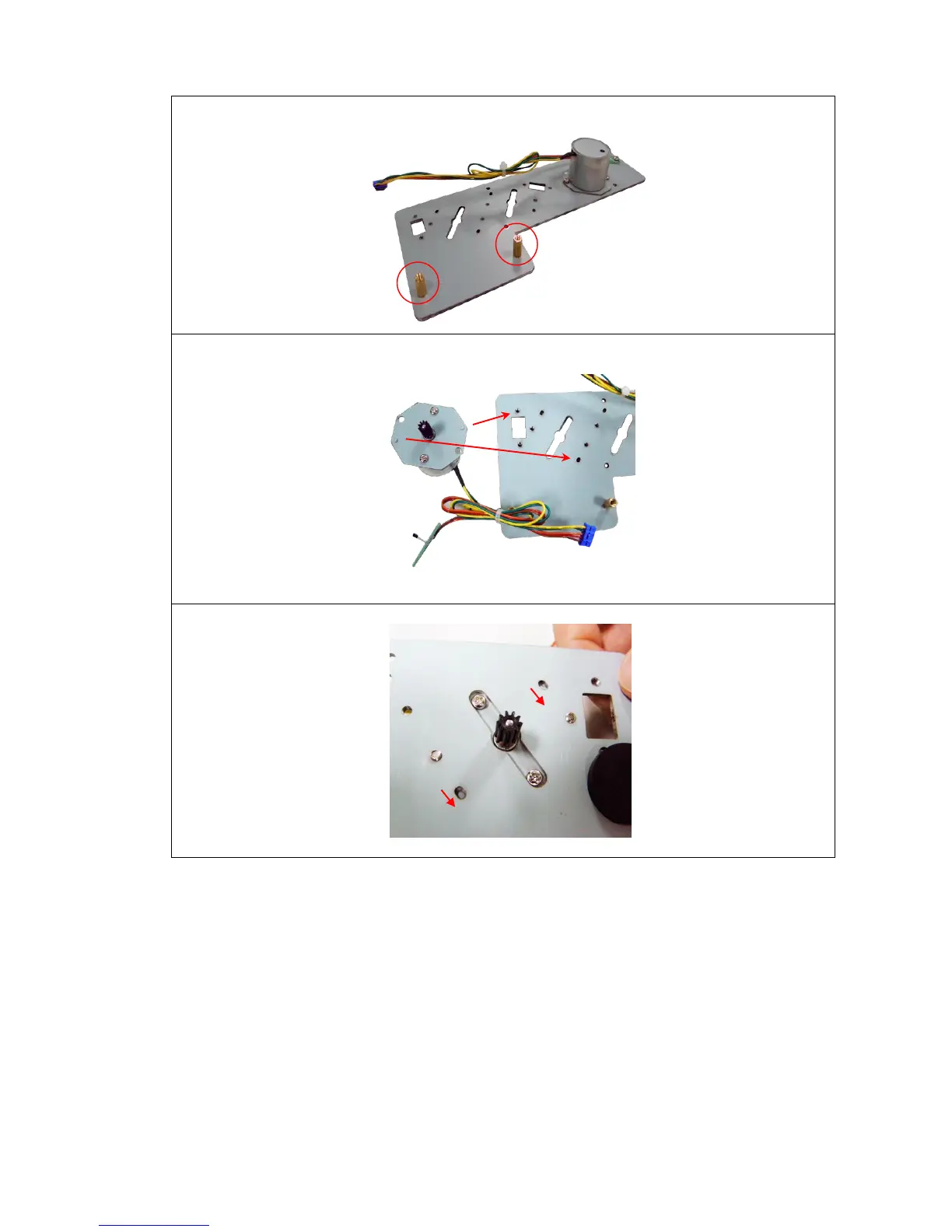

16. Install 2 copper pillars to the DC motor fixing plate.

17. Place the two locating protrusions on the motor into the locating holes on the

fixing plate.

18. Make sure the protrusions are at lower position of locating holes.
