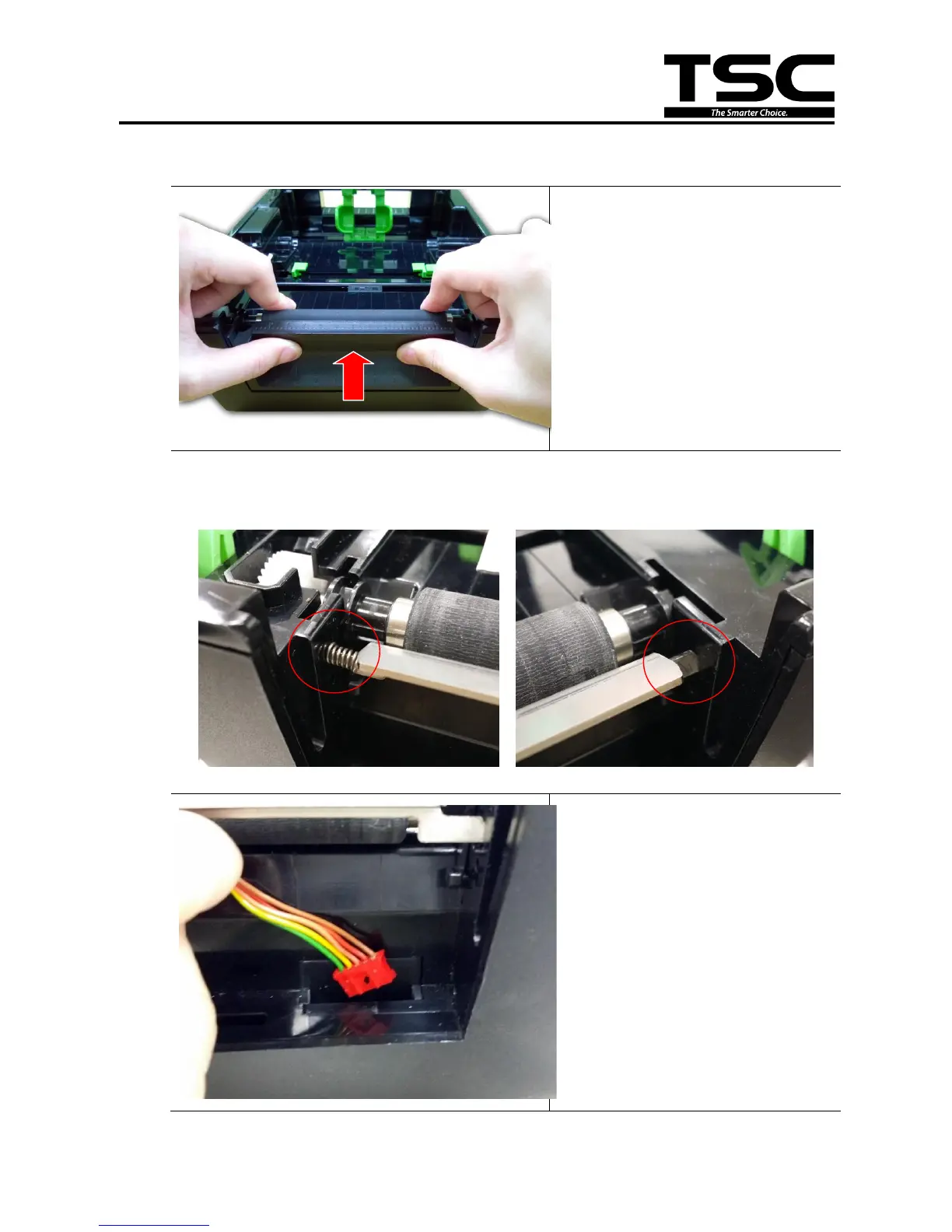

3.12 Peel-off Module Installation (Option)
1. Open the printer cover to
remover the lower front panel.
2. Install the peel-off bar into both slots on front inner lower cover. Please install left
side (with spring) first.
3. Put the peel-off module harness
through the slot of the lower
inner cover front side.
