Installation
The installation guidelines are specific to the CD2000 Totalizer. Please refer to the individual technical
data sheets for information pertaining to the turbine flowmeter, RTD temperature probe, and
printer. Compliance with the following basic guidelines permits the user to acquire maximum
benefit of this asset.
InstallationPrecautions
The CDS2000 incorporates
sophisticated electronic components
and many safeguards have been
designed to minimize susceptibility to
static discharge and stray voltages.
Every precaution for safe handling
should still be observed. The most
common is to eliminate static or stray
voltage by grounding oneself when
touching a conductive discharge
surface. Please Note: Welding in the
proximity of the CDS2000 is not
advised. Disconnect ALL cables at
the CDS2000 prior to welding activity.
The display lens is a plastic
composite and should be cleaned with a soft fabric cloth. Paper towel products or dirty leather gloves will
score the lens and obscure visibility.
TotalizerInstallationLocation

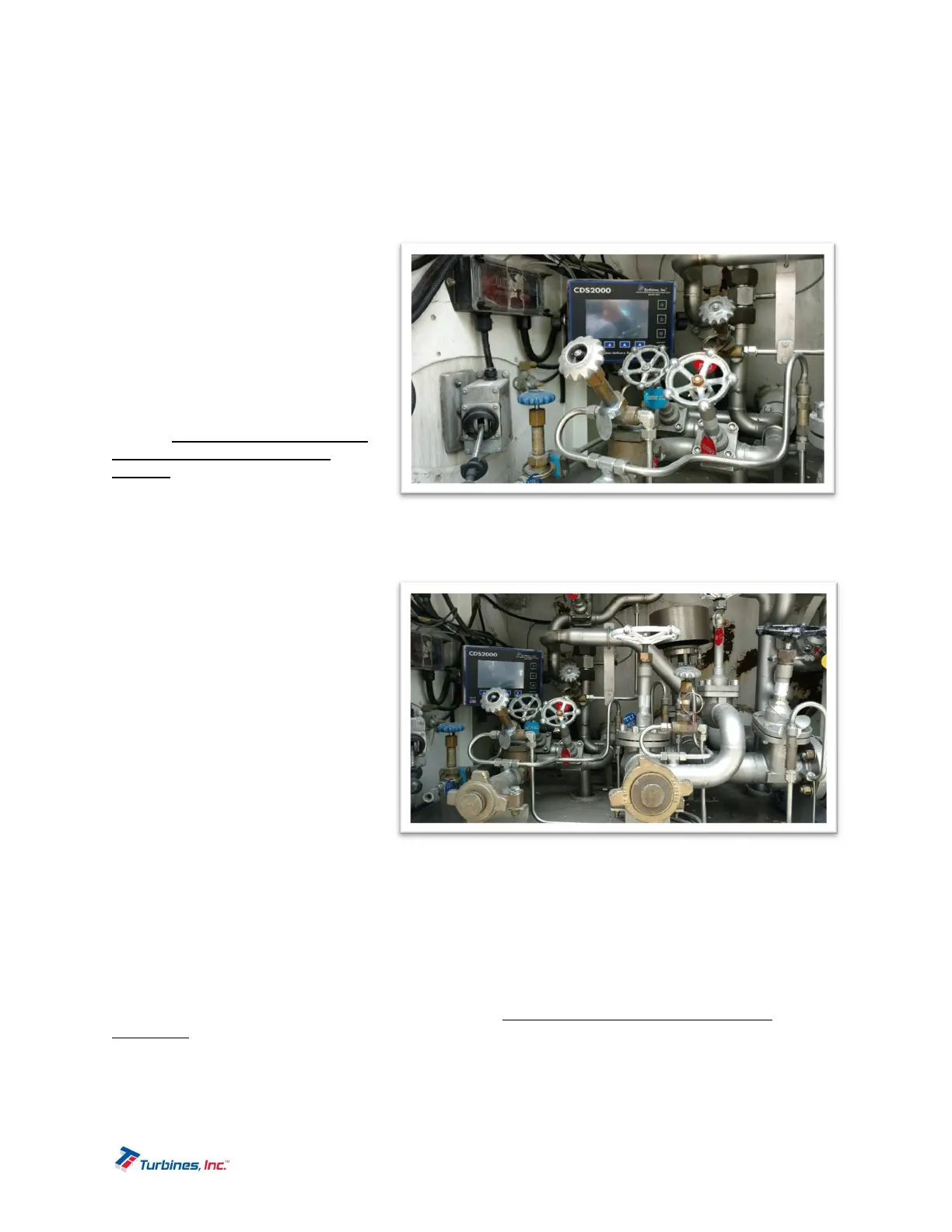

The CDS2000 should be mounted at
a convenient viewing height and angle
that minimizes the reduced visibility
caused by direct sunlight.
Accessibility is also a prime
consideration. A thin application of an
Oxygen compatible lubricant on the
threaded bolts of the securing knobs
eliminates any corrosion opportunity.
The threaded brass receptacle
prevents galling. Although the
CDS2000 has been designed to
withstand the rigors of the cryogenic
transport environment, placement
under piping that defrosts or in the
proximity of pumps that spray liquid is not recommended.
InterconnectingCableInstallation
All cables should be secured in place with proper stress relief and avoiding contact with the piping. An
example of incorrect and correct cable securement can be found on page 16.. Sufficient slack should be
maintained in the cables to permit the CDS2000 Totalizer to be rotated forward for easy access to the
rear panel connections. Additionally, a thin application of a non-conductive Oxygen compatible lubricant
to the male threads of the nickel-plated connectors will provide an additional moisture barrier. To
minimize interference of other operating systems or low voltage events the power cable should be
terminated at the battery or the most direct input source. Please Note: the power input is polarity
insensitive. Turbines Inc. strongly recommends that power for the CDS2000 be direct to the source.
