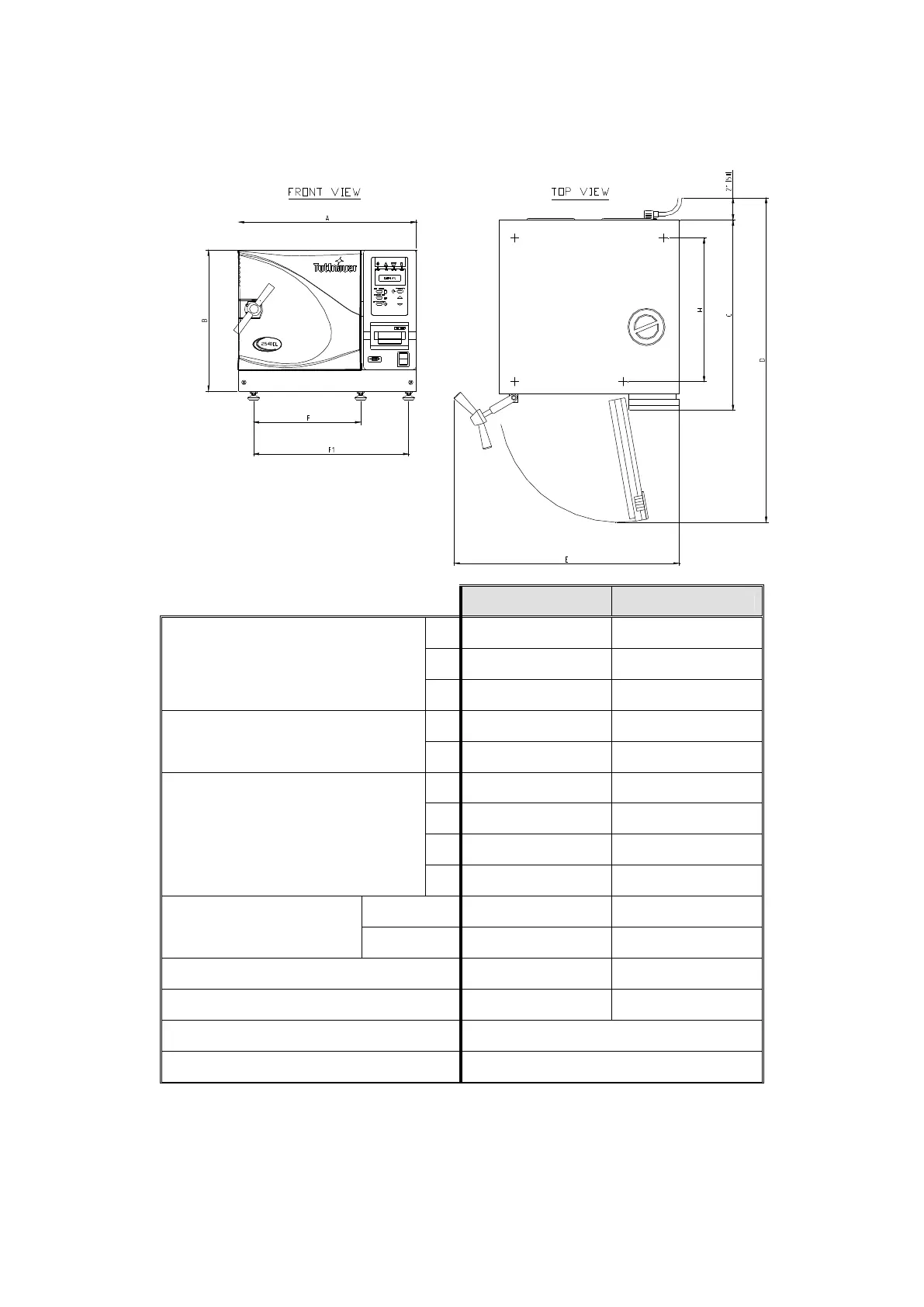

3.10 Overall Dimensions Model 2540 EL
mm in
Overall Dimensions
A 510 14.4
B 365 20.0
C 545 21.5
Maximum dimensions
(door open)
D 910 35.8
E 655 25.8
Distance between supporting legs
F1 – front legs
F - rear legs
F 415 16.4
F1 422 16.6
G 50 2.0
H 400 15.8
Chamber
diameter 250 9.8
Depth 420 16.5
Reservoir volume 3.0 lit. 0.8 gal
Minimum water volume in Reservoir 0.8 lit. 0.21 gal
Max. Allowable Working Pressure (MAWP)
2.76 bar (40 psi)
Load No. counter Counting from 0 to 3000 and nullifies.
