Tuttnauer 2540 - Front View

Page 19 of 66 Pages

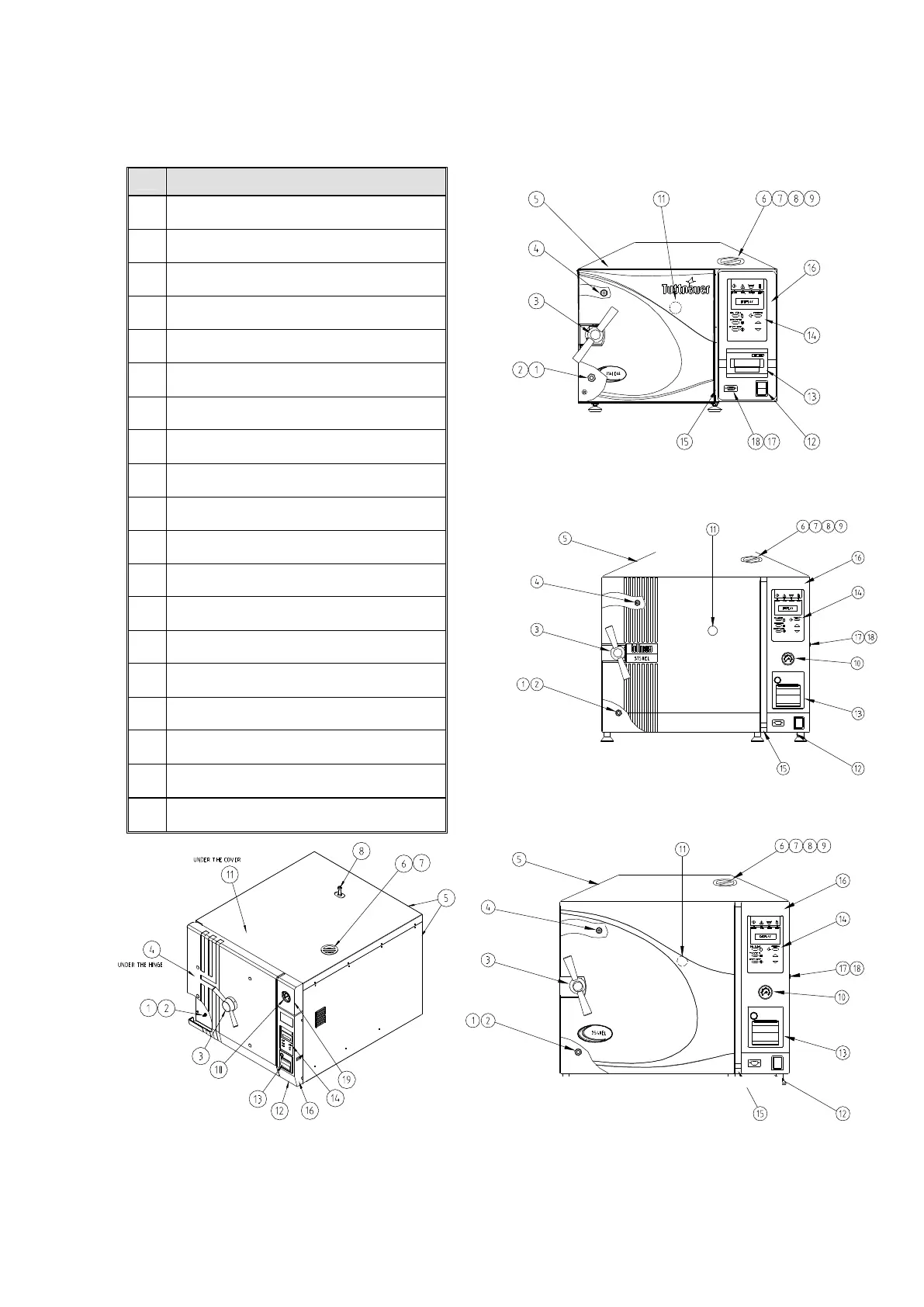

FRONT VIEW
No.
Description
1 Reservoir water drain valve
2 Ring for drain valve
3 Door closing device
4 Door switch
5 Autoclave cover
6 Water reservoir cover
7 Water reservoir – assembly
8 Safety valve
9 Air relief valve
10 Pressure gauge
11 Validation port (under door cover)
12 Main switch
13 Printer
14 Front panel key board
15 Completion to panel
16 Panel base
17 Flat cable for ANL-T1 – RS232
18 RS232 port cover
19 Pressure gauge panel
Models 5050/5075
Model
3150
Model
3850/3970
Model 2540
