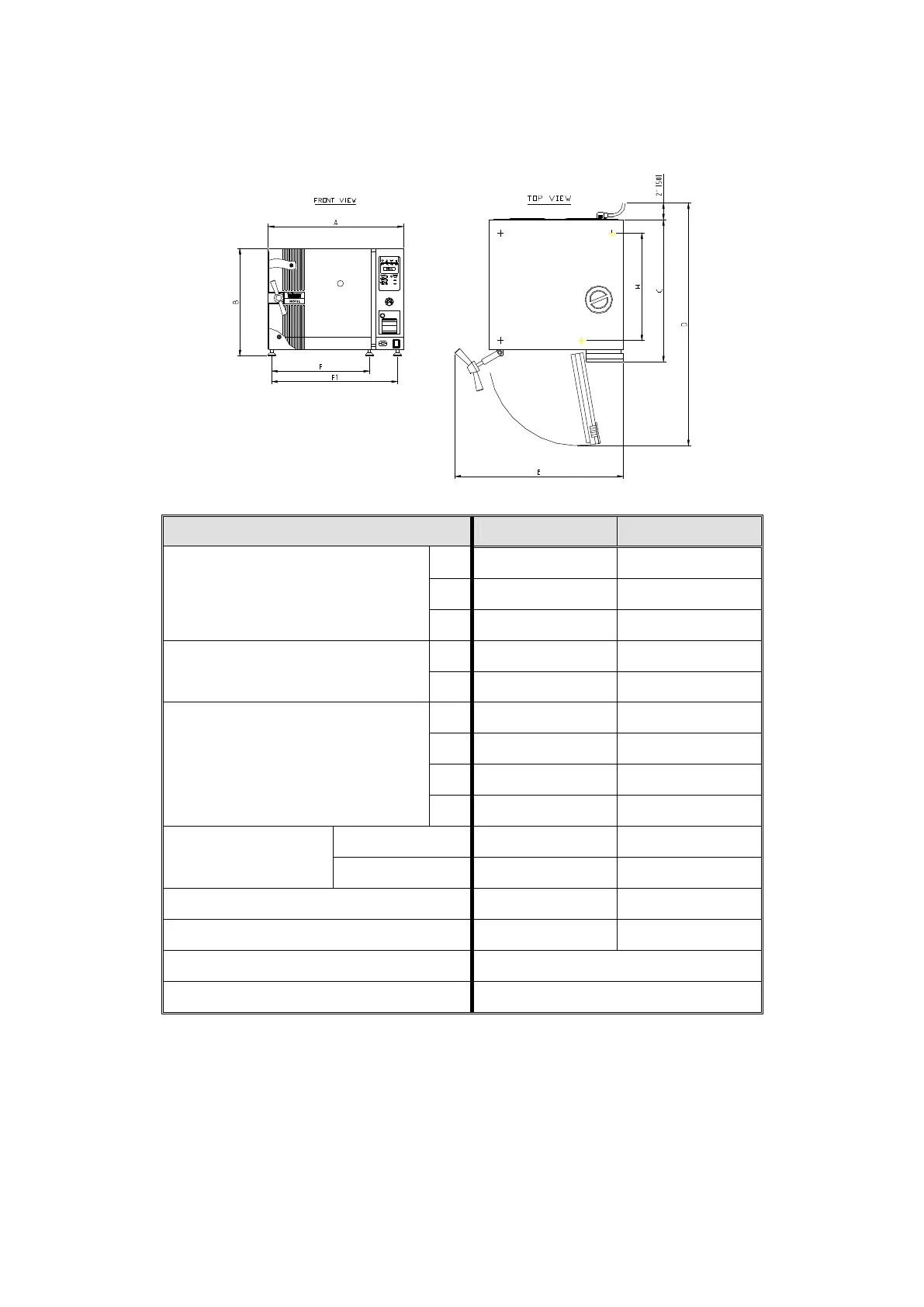

3.11 Overall Dimensions Models 3150 EL
mm in
Overall Dimensions
A 600 23.6
B 450 17.7
C 695 27.4
Maximum dimensions
(door open)
D 1120 44.1
E 730 28.7
Distance between supporting legs
F1 – front legs
F - rear legs
F 370 14.6
F1 490 19.3
G 50 2.0
H 515 20.3
Chamber
diameter 310 12.2
Depth 500 19.7
Reservoir volume 6.0 lit. 1.6 gal
Minimum water volume in Reservoir 2.0 lit. 0.53 gal
Max. Allowable Working Pressure (MAWP)
2.76 bar (40 psi)
Load No. counter
Counting from 0 to 3000 and nullifies.
