Tuttnauer 2540 - Models 3850 & 3870 EL Dimensions; Physical Dimensions and Reservoir Specs

Page 13 of 66 Pages

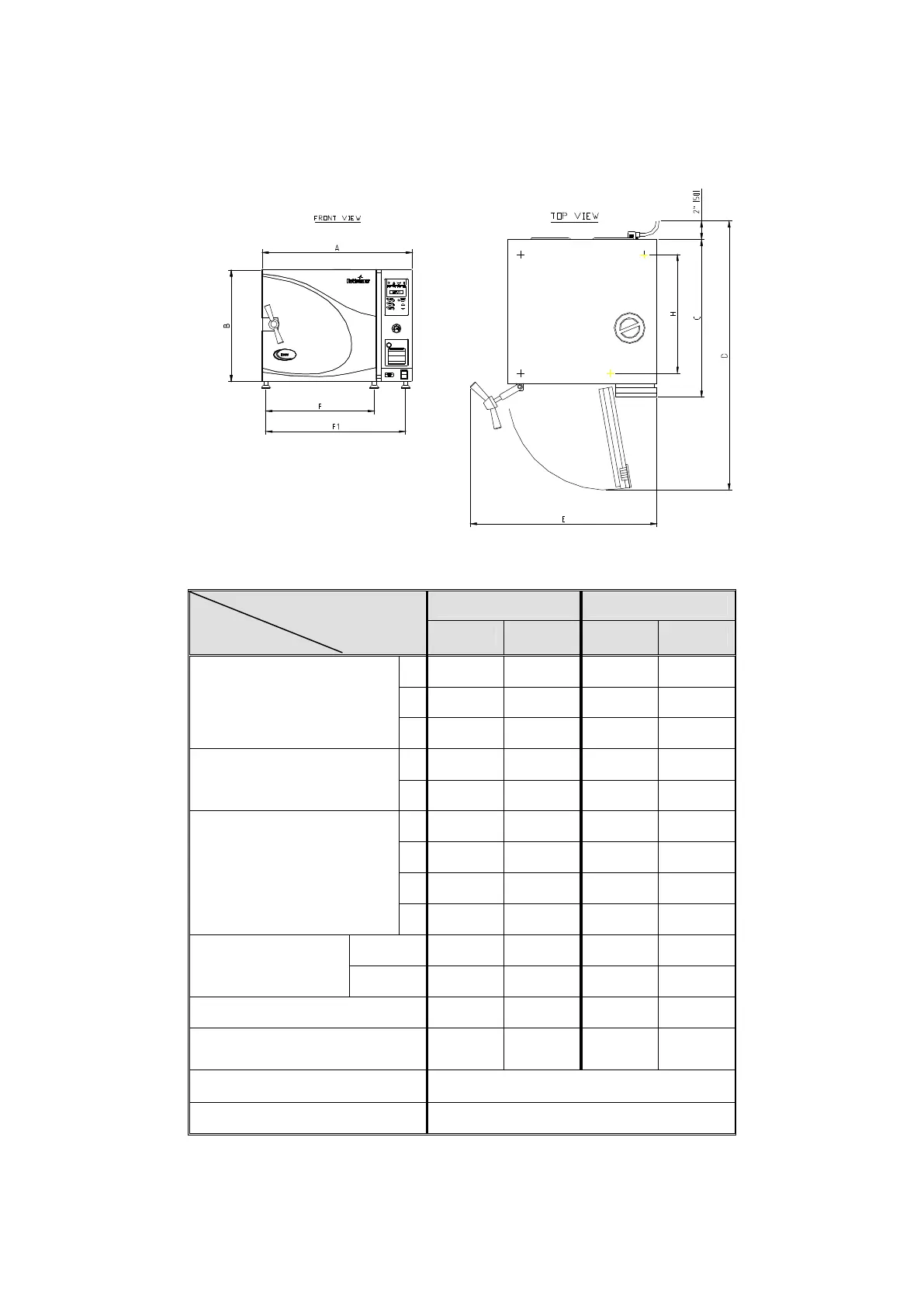

3.12 Overall Dimensions Models 3850, 3870 EL
Model
Dimensions
3850 3870
mm in mm in
Overall Dimensions
A
660 26.0 660 26.0
B 525 20.7 525 20.7
C 695 27.5 875 34.5
Maximum dimensions
(door open)
D
1155 45.5 1335 53.0
E 815 32.0 815 32.0
Distance between
supporting legs
F1
– front legs
F - rear legs
F
450 17.7 450 17.7
F1 564 22.2 564 22.2
G 50 2.0 50 2.0
H 555 21.8 725 30.5
Chamber
diameter
384 15.1 384 15.1
Depth 581 20.1 690 27.2
Reservoir volume 6.0 lit. 1.6 gal 6.0 lit. 1.6 gal
Minimum water volume in
Reservoir
2.0 lit. 0.53 gal
2.0 lit. 0.53 gal
Max. Allowable Working Pressure
(MAWP)
2.76 bar (40 psi)
Load No. counter Counting from 0 to 3000 and nullifies.
