9.5 Replacing the Door Gasket
For models 2540, 3150, 3850, 3870
(Gaskets of models 5050, 5075 shall be replaced by a technician. See
technician manual)

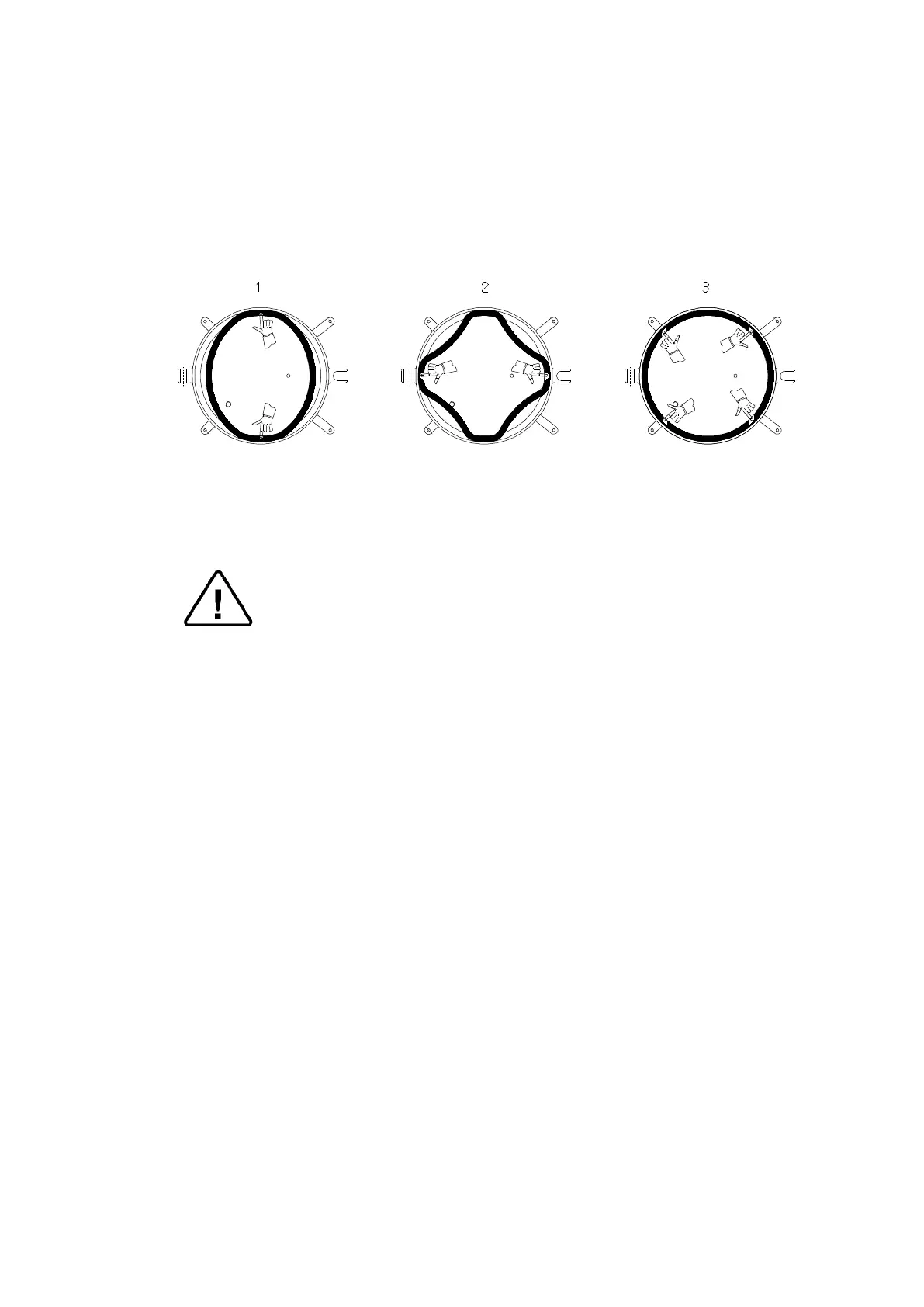

Pull off the gasket from the door groove and install the new gasket
referring to the drawings as above points 1, 2 and 3.
Caution!
This gasket is designed with a trapezoidal cross section. The
gasket should be placed with the widest side towards the door.
