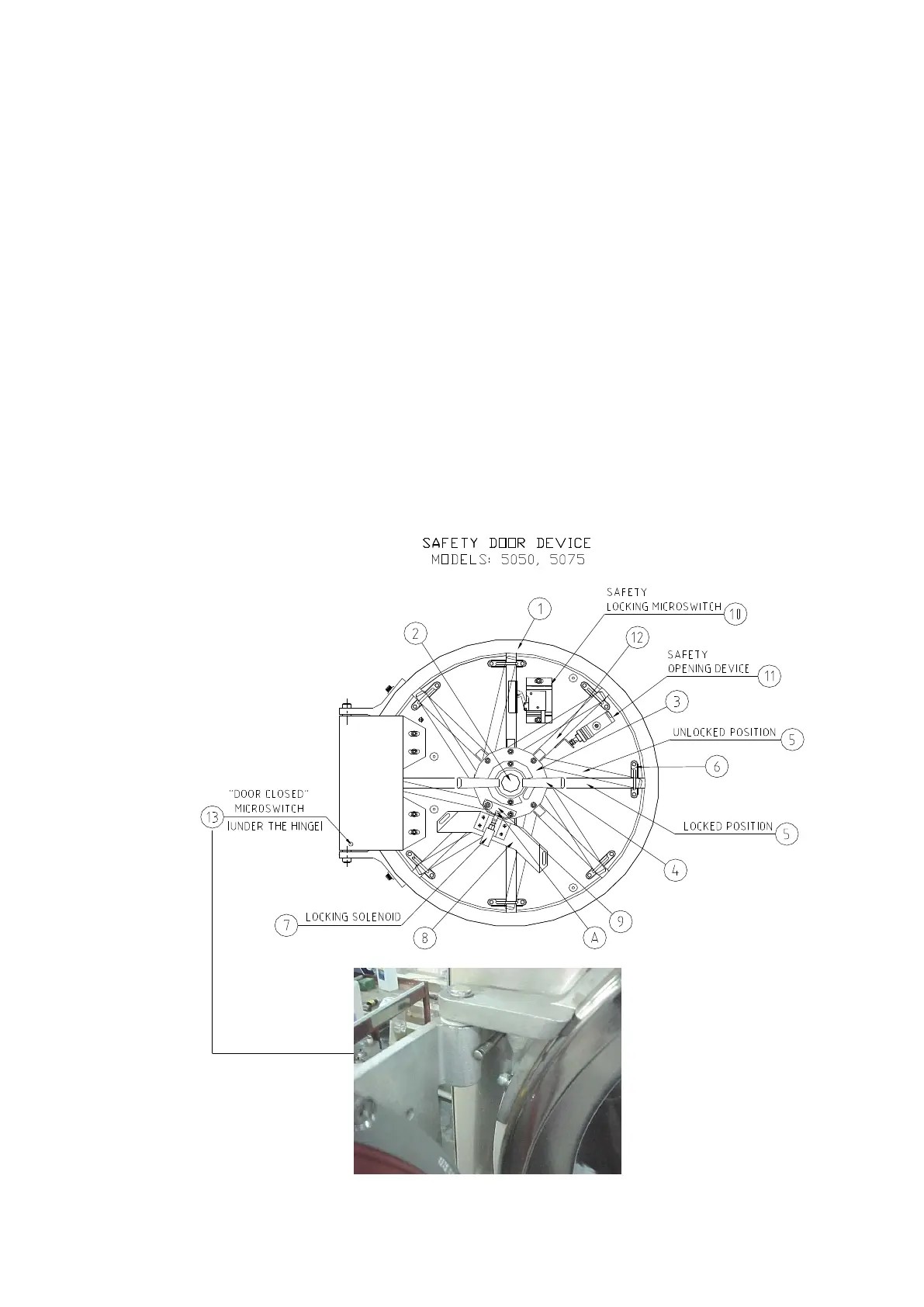

9.7.2.2 Safety locking microswitch (10)
This microswitch is activated when the arms are in a
radial – “locked” position.
The microswitch signal one of the following:
a. Arms are locked – cycle can be activated
b. Arms are in a non-locked position
. It is impossible
to start a cycle and the door can be opened.
9.7.2.3 DOOR CLOSED microswitch (13)
This microswitch is located under the circular frame
(1) and has an activating rod piercing through the
frame. When the door is closed it presses the micro-
switch’s rod. At this stage the microswitch sends a
signal that the door is closed.
The two micro-switches (10 and 13) ensure that
operation cannot be started if autoclave door is
unlocked. When the two micro-switches are activated,
the light “Door Closed” on the keyboard panel is ON
and operation can be initiated.
