To close pillion seat:
• Slide the rear end of the seat bottom underneath
the frame hook.
• Locate the seat lock pin into seat lock latch and
gently press (at the front end).
- Finally ensure that the seat is fastened securely
to the frame.
To open the rider seat:
• Remove the pillion seat as explained earlier
and take out the control key from the seat lock
without fail.

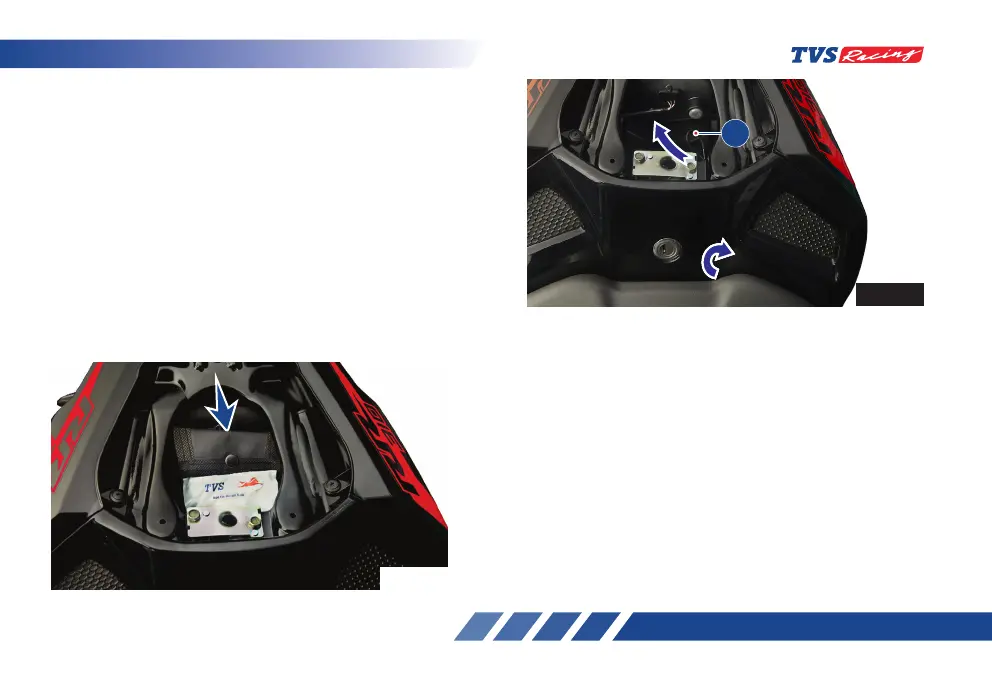

• Take off the tool kit from the storage (ref. Fig. 32)
• Pull the seat release cable (A) to release the seat
lock (ref. Fig. 33).
• Keeping seat release cable pulled, lift the seat
from rear and slide it backward.
To close the rider seat:
• Slide the front end of the seat bottom underneath
the frame hook.
• Locate the lock pin of the seat into seat lock latch
and gently press at the rear end.
A
Fig. 32
Fig. 33
