114

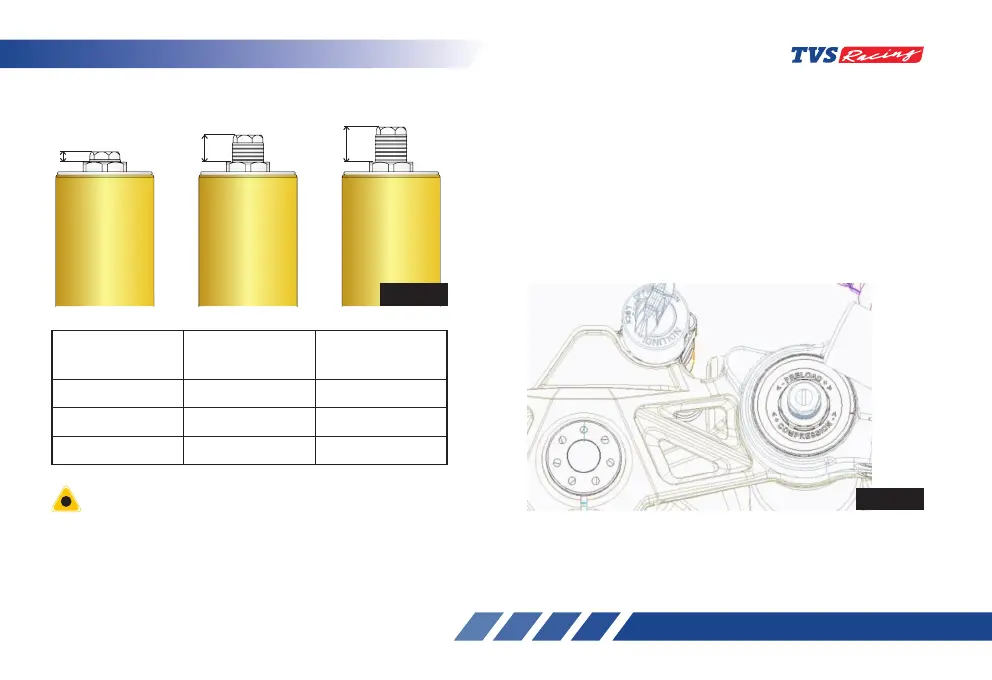

Compression damping force
The compression damping force adjustment is
provided in the right leg only.
To increase the damping turn the adjuster screw
clockwise and to reduce the damping turn the
adjuster screw towards anti-clockwise, as shown.
(ref. Fig. 38)
During adjustment count the numbers of clicks from
fully closed (clockwise) position.
Do not attempt to over-tight the adjuster bolt, beyond
the maximum and minimum position, to prevent internal
damage.
Fig. 37
Fig. 38
1
st
groove - hard
suspension
5
th
groove - Standard
position
7
th
groove - soft
suspension
A
Spring
Preload
Distance ‘A’
(in mm)
Groove
position
Standard 14 5
Maximum 4 1
Minimum 19 7
