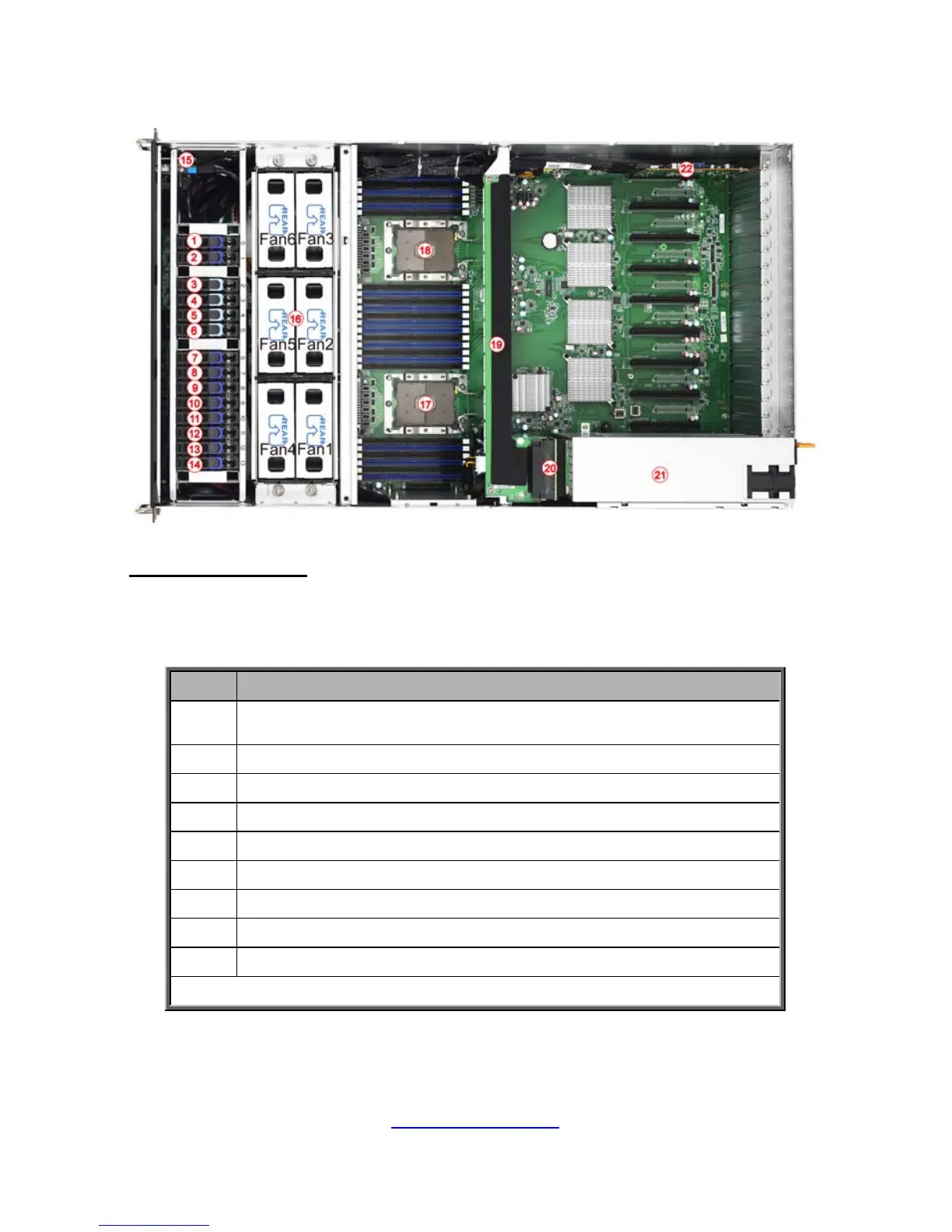

1.5.4 System Top View
HDD Configurations
1. (14) SATA (#1~#14)
2. (10) SATA (#1~#2, #7~#14) + (4) NVMe (#3~#6)
No. Description
1~14
(14) 2.5” HDDs/SSDs (HDD0 ~ HDD13) w/
M1284F77D-BP12E-14 HDD BP Board pre-installed
15 M1713F77C-FPB Front Panel Board
16 System Fans
17 CPU0
18 CPU1
19 M7059F77C-D-PDB Power Distribution Board
20 M7109F77D-D-PBP Power Backplane Board
21 (2+1) Redundant Power Supply
22 M2093 Riser Card (pre-installed for NVME SKU)
NOTE: The system is pre-installed with S7109 motherboard.
