2.1.6 Installing Hard Drives
The FT77D-B7109 supports fourteen 2.5” HDD/SSD. Follow these instructions to
install a hard drive.

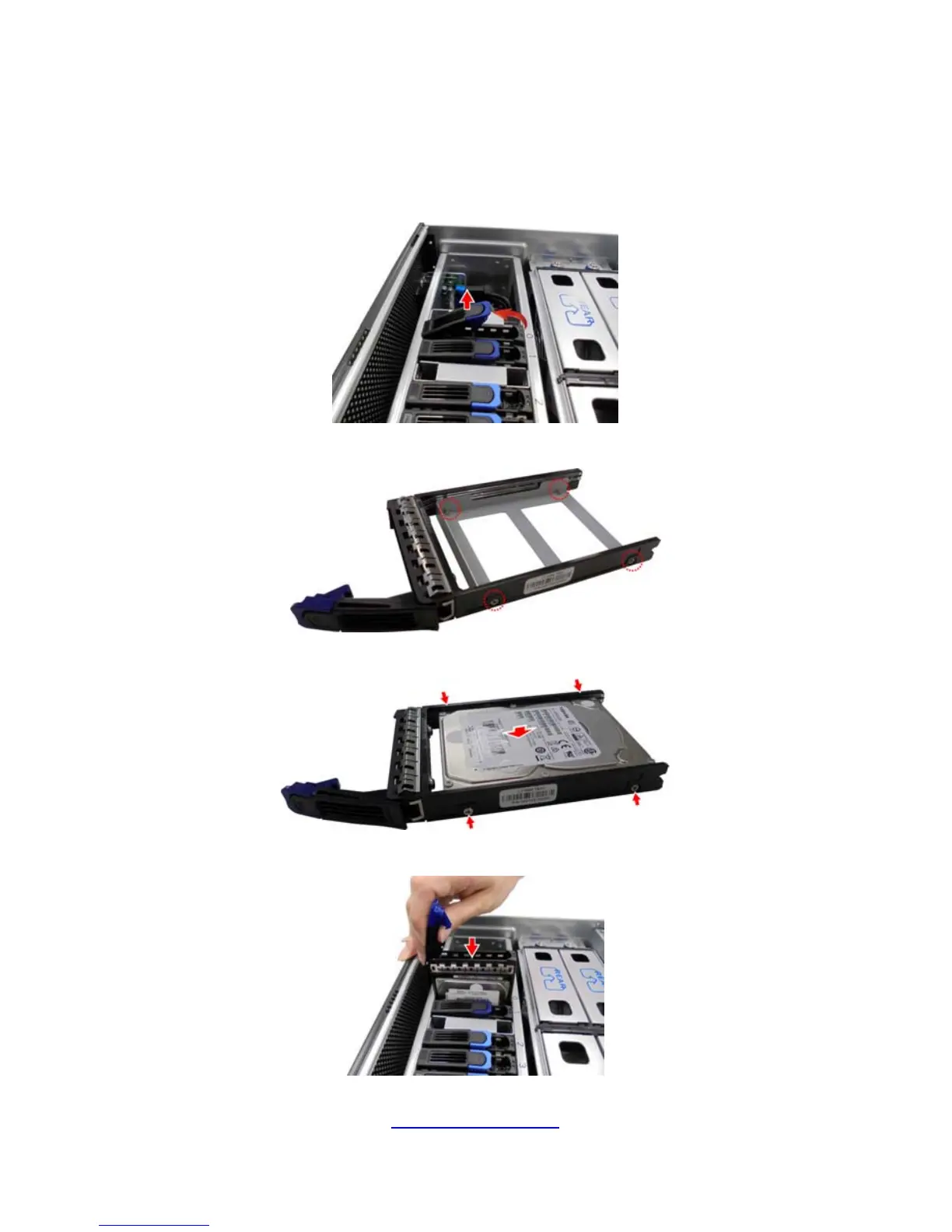

1. Pull the HDD tray out from the chassis.
2. Remove 4 screws to detach the HDD tray bracket.
3. Place a HDD/SSD into the drive tray. Use four screws to secure the HDD/SSD.
4. Reinsert the HDD tray into the HDD cage.
