3.7.1 HDD BP Board Features

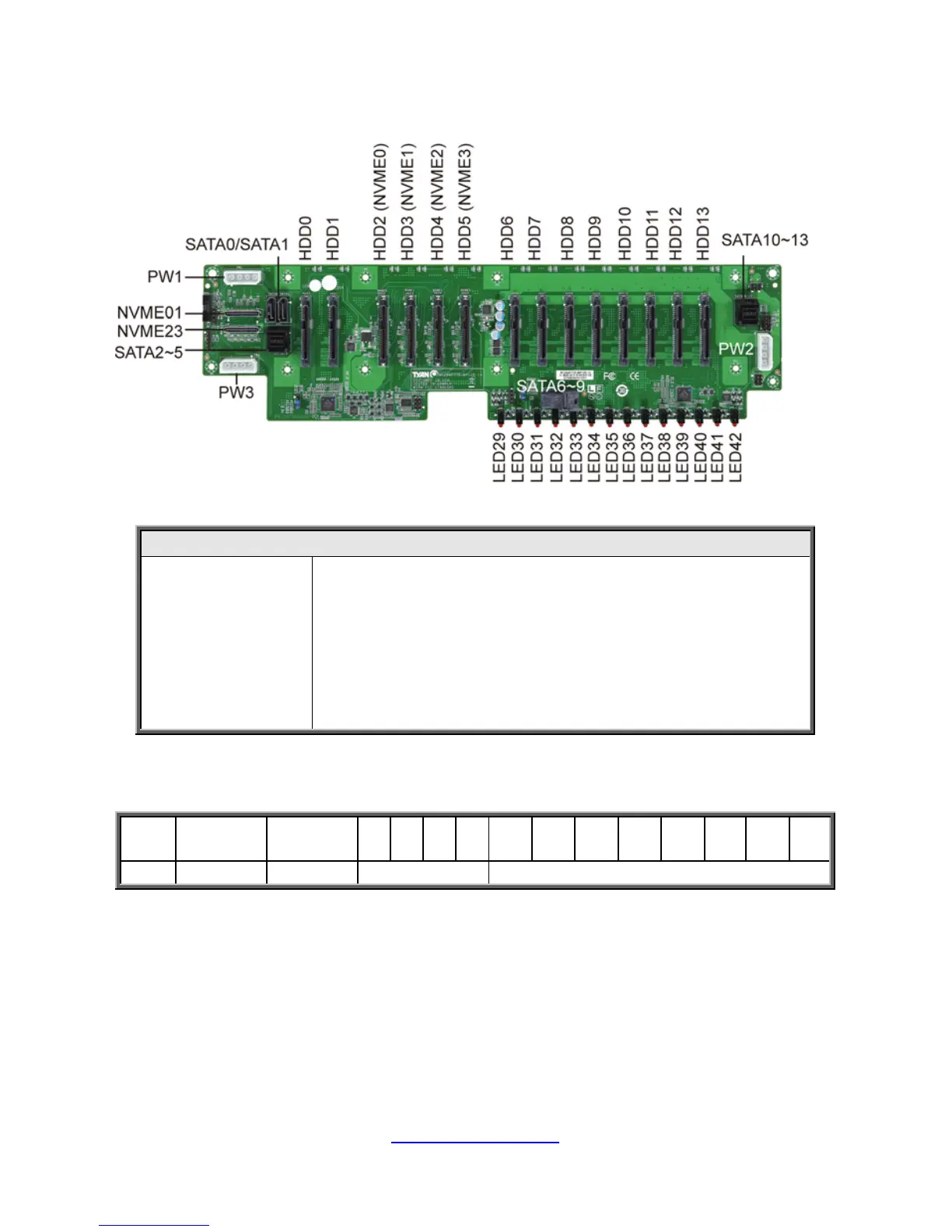

M1284F77D-BP12E-14 HDD Backplane Board
Specifications
Support 14 hot-swappable 2.5” HDD/SSD or NVMe SSD,
speed up to 12Gb/s
Onboard HDD LED indication for HDD status
(Active/Status)
(3) B4P HDD PWR Connector
(2) 7-pin SATA Connector
(3) Mini-SAS HD Connector
(2) SFF-8611 OCuLink connectors
HDD/SSD sequence
Port
#
0 1 2 3 4 5 6 7 8 9 10 11 12 13
sSATA4 sSATA5 sSATA0~3 SATA0~7
