2.1.4 Installing Expansion Cards
Only the PCI-E Gen3 x16 slots can support GPU (Graphic Processing Unit) cards.
Follow these instructions to install the PCIE cards.
Using GPU Bracket

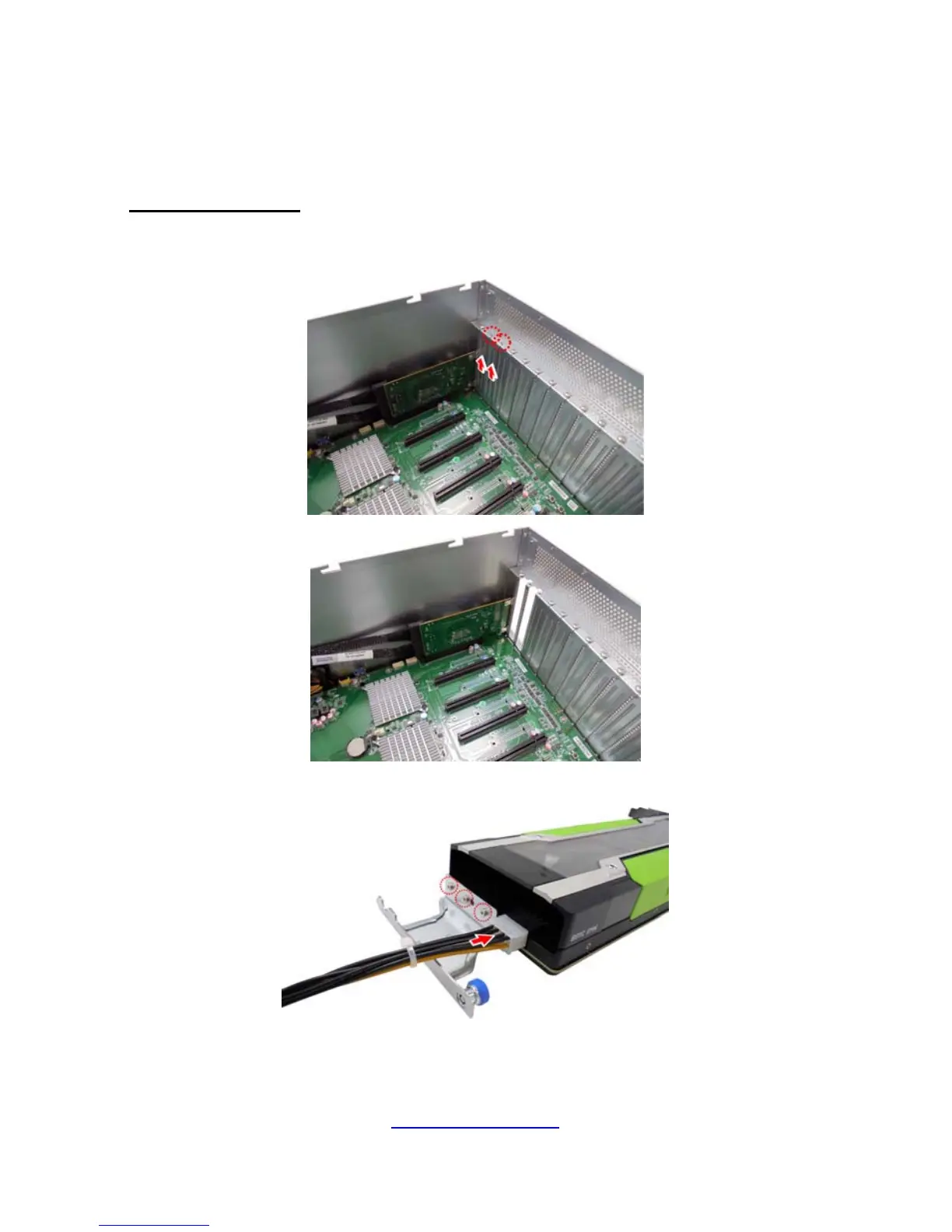

1. Locate the PCI-E Gen.3 x16 slot on the motherboard. Unscrew to take out
the dummy brackets.
2. Screw the GPU bracket to the GPU card and connect the GPU PWR cable.
