Chapter 3: Replacing Pre-Installed Components
3.1 Introduction
This chapter explains how to replace the pre-installed components, including the
S7109 Motherboard, M1713F77C-FPB Front Panel Board, M1809F77A-FB Fan
Board, M2215-L8-1F Riser Card, M1284F77D-BP12E-14 HDD Backplane Board,
M7109F77D-D-PBP Power Backplane Board, M7059F77C-D-PDB Power Distribution
Board, System Fan and Power Supply etc.

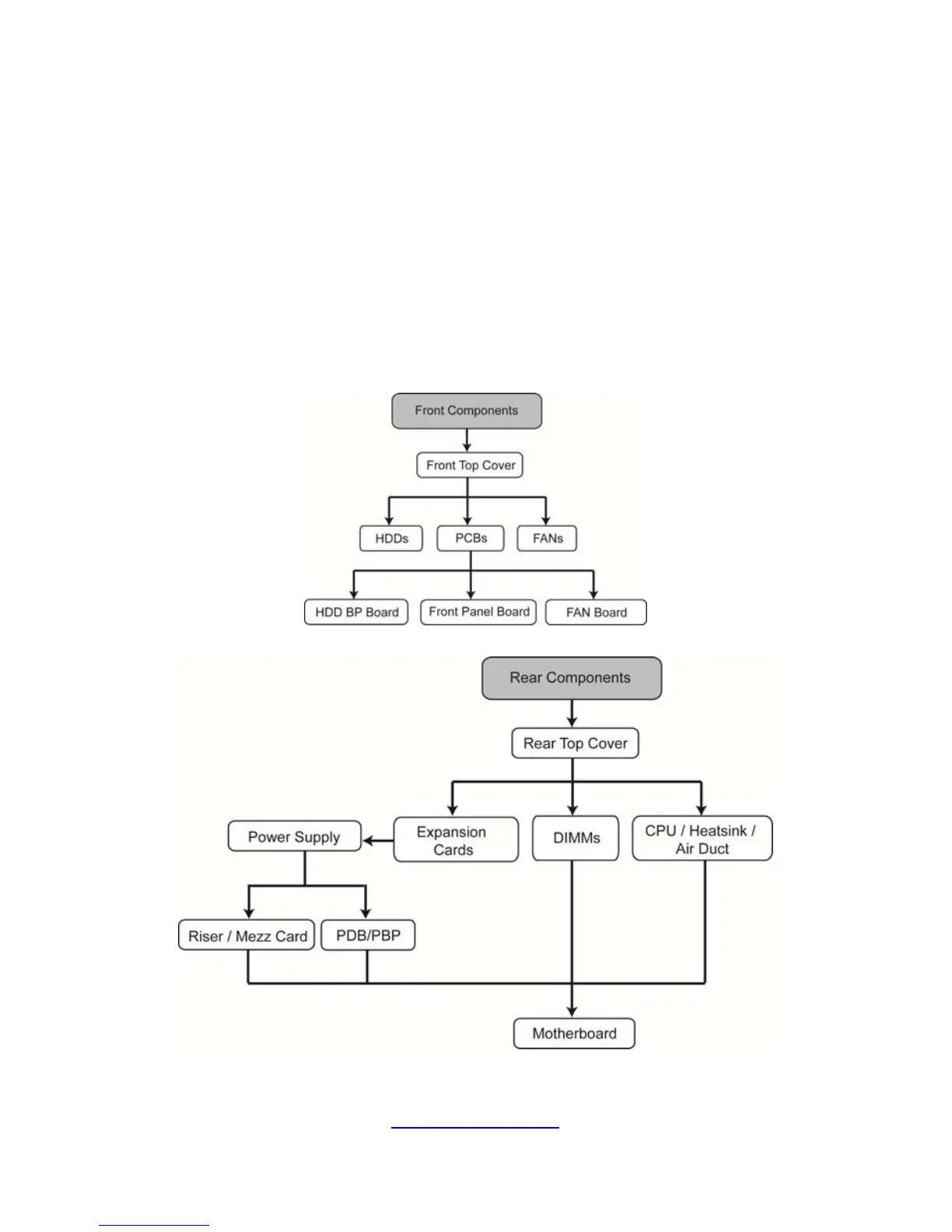

3.2 Disassembly Flowchart
The following flowchart outlines the disassembly procedure.
To Next Page
