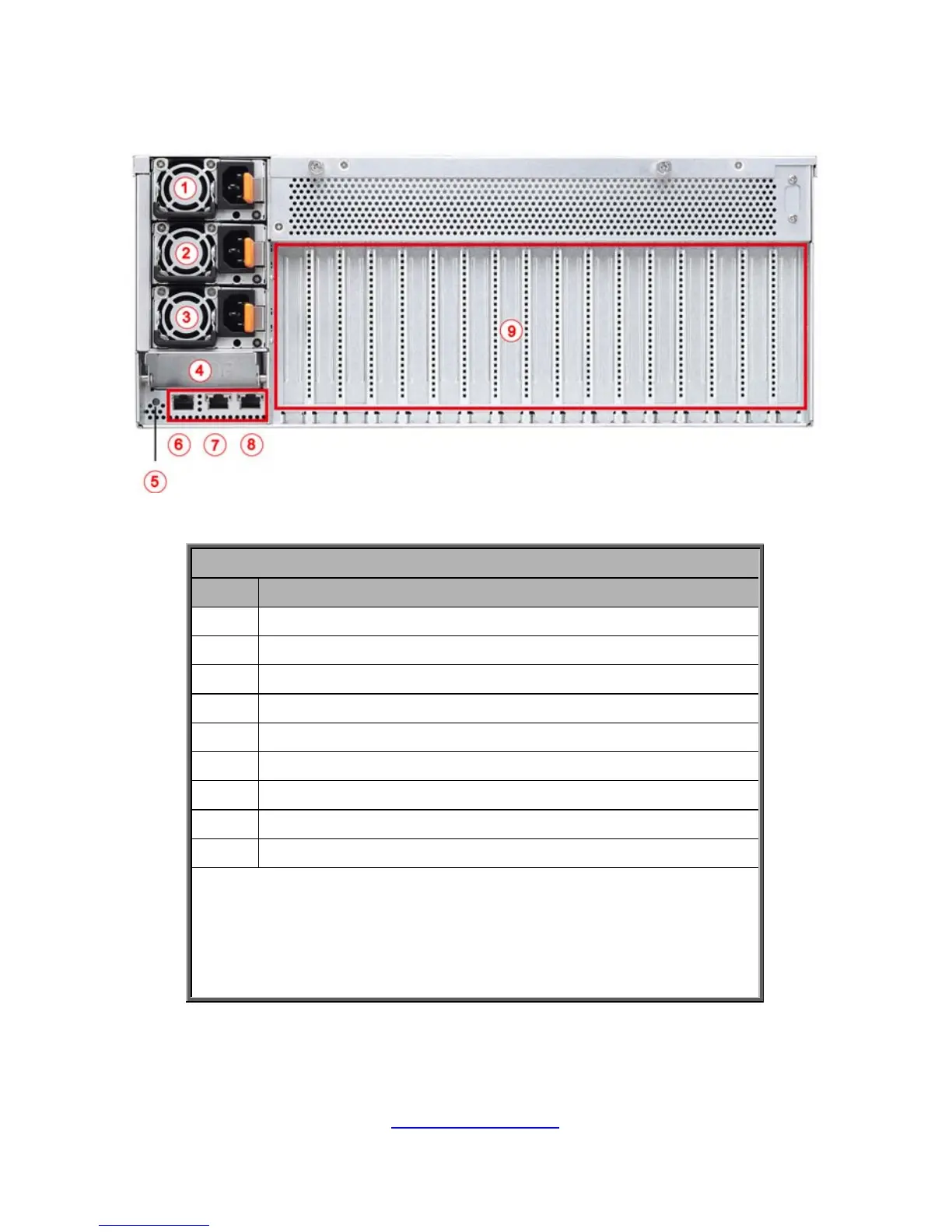

1.5.2 System Rear View

B7109F77DV14HR-2T-N / B7109F77DV14HR-2T-NF

No. Description

1 PSU2

2 PSU1

3 PSU0

4 Mezzanine Card Slot

5 ID LED Button

6 LAN3 (IPMI)

7 LAN2

8 LAN1

9 PCIE Slots

NOTE:

1. With every two out of three PSUs can boot up the FT77D-B7109.

2. The FT77D-B7109 can support the redundant power under the

condition when the voltage is 100~127V and the output power is

less than 2000W, or the voltage is 200~240V and the output power

is less than 3200W.
