3.10 Replace the Power Backplane Board

Follow these instructions to replace the M7109F77D-D-PBP Power Backplane Board.

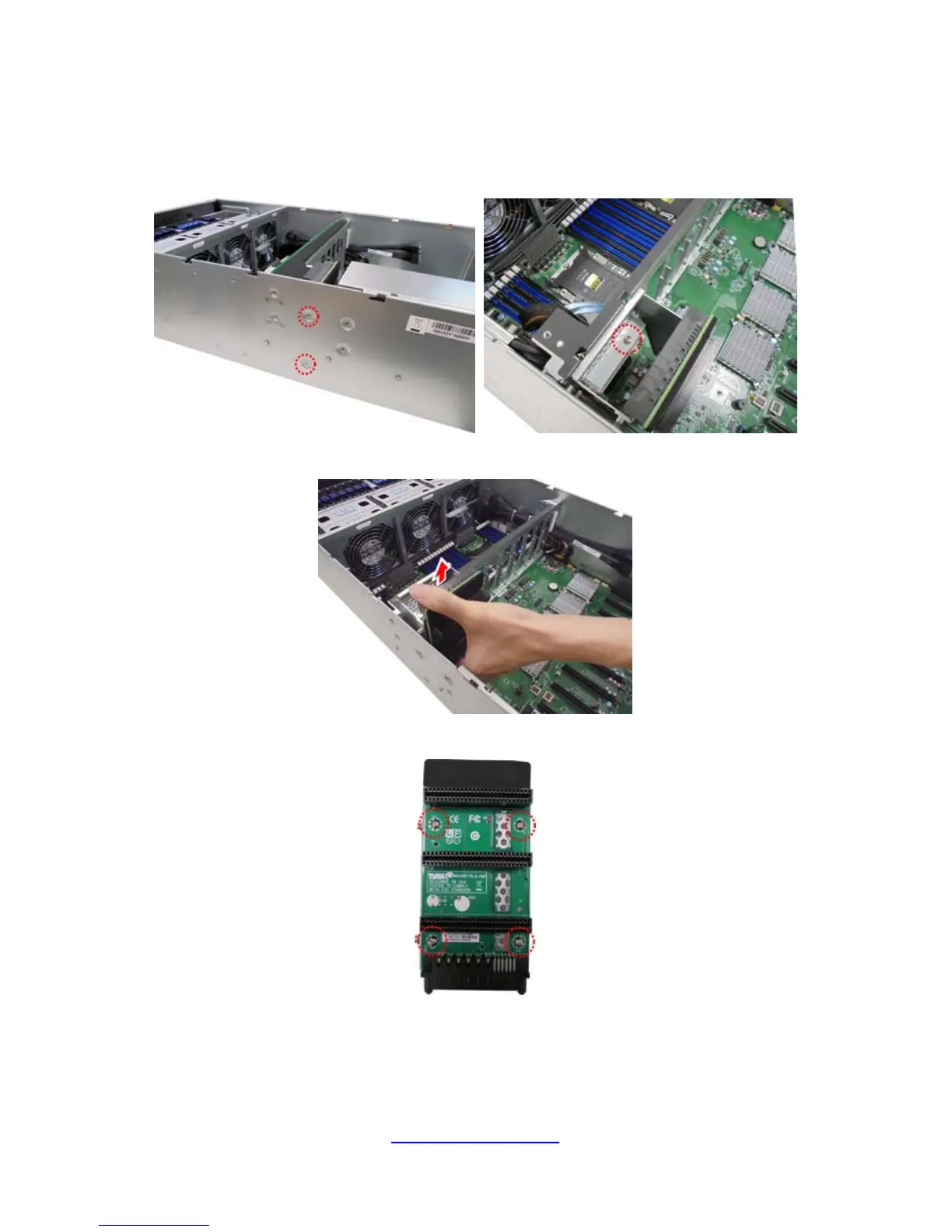

1. Unscrew the Power Backplane Board Tray.

2. Lift up the PBP Board Tray.

3. Unscrew the M7109F77D-D-PBP from the bracket and replace with a new one.

4. Follow the steps described earlier in reverse order to reinstall the power

backplane board.
