2.2.2 Installing the inner Rails to the Chassis

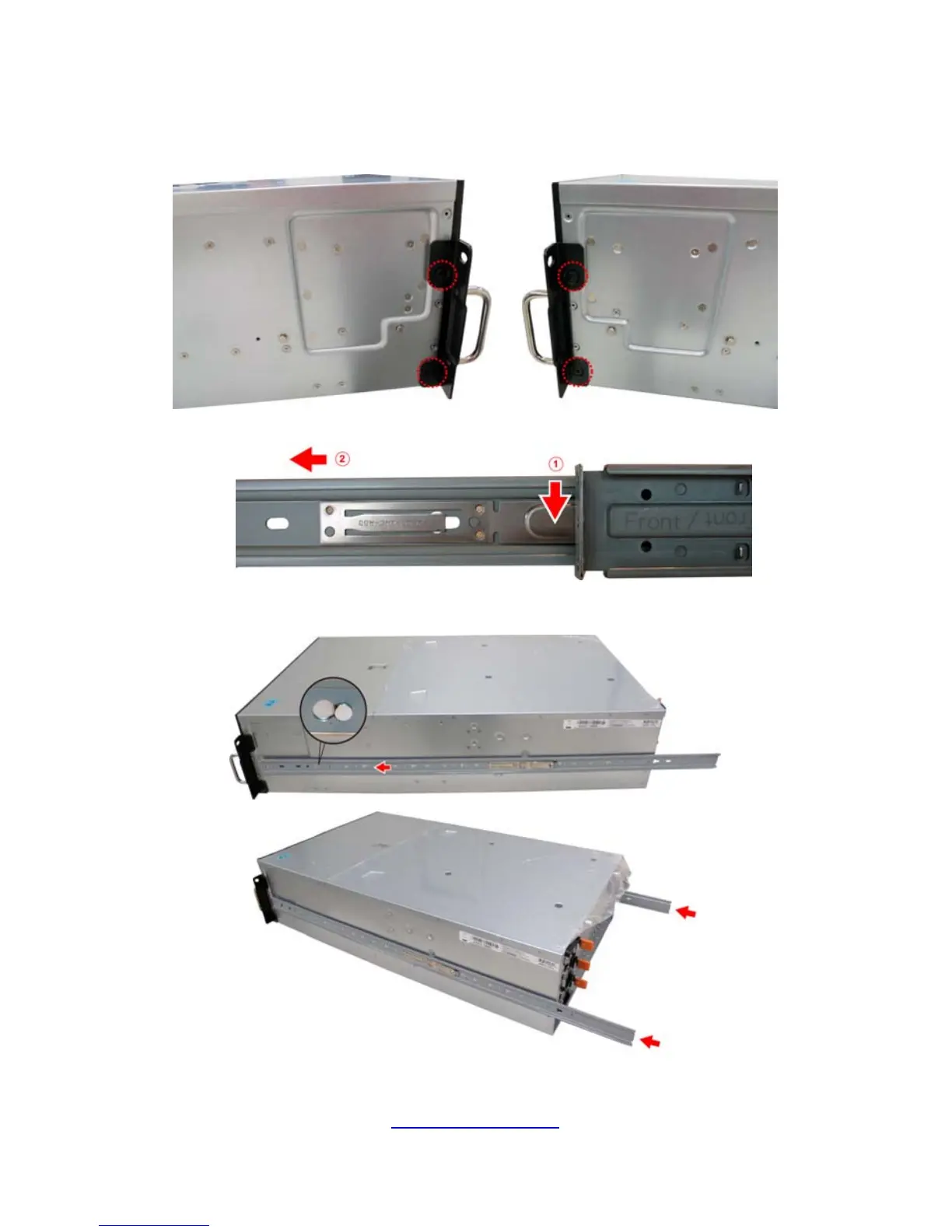

1. Screw the mounting ear to each side of FT77D-B7109 as shown using 4 screws
from the supplied screws kit.
2. Press the latch key to draw out the inner rails from sliding rails.
3. Secure inner rails to both sides of the chassis. Be sure the mounting holes are
correctly matched.
