3.7 Replacing the HDD Backplane Board
Follow these instructions to replace the M1284F77D-BP12E-14 HDD Backplane
Board.

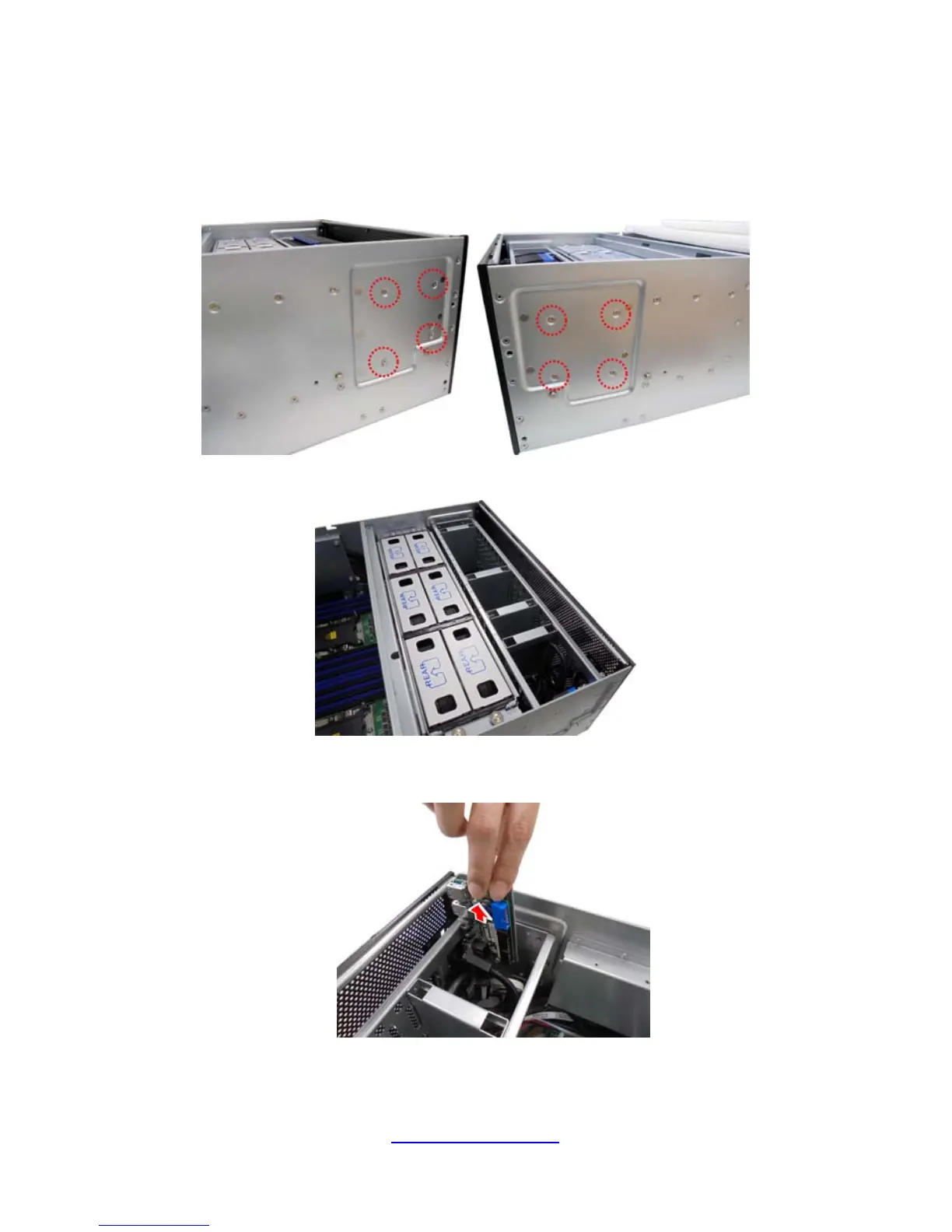

1. Remove the screws on both sides of the chassis.
2. Remove all HDD trays from the HDD cage.
3. Refer to Section 3.5 Replacing the Front Panel Board to take out the Front
Panel Board Tray.
